SPECIFICATIONS

Brand Name: NoEnName_Null

Wattage: 50AH/AC

Certification: CE

Origin: Mainland China

Hign-concerned Chemical: none

Model Number: G6E

Product Name: 6inch tuya control panel

Work Power: 110V/60Hz-240V/50Hz

Screen: IPS LCD 720*1440

System: Android 10.0

Wireless Protocol: Zigbee

Cpu: Cortex-A53 1.5G

Power supply: 110v-230v ,50Hz/AC

Internal memory: 1GB+8GB ,TF Card up to 32gb

Feature: Wifi+zigbee+Bluetooth+10/100m Ethernet.

warranty: 2 years

Feature2: 2-way relay

Feature3: ne-click device import, device control, scene editing & control

feature4: external Bluetooth speakers, Spotify,Alexa voice control

Feature 5: access intercom, video doorbell, video door lock *Life services: weather information, schedule notifications

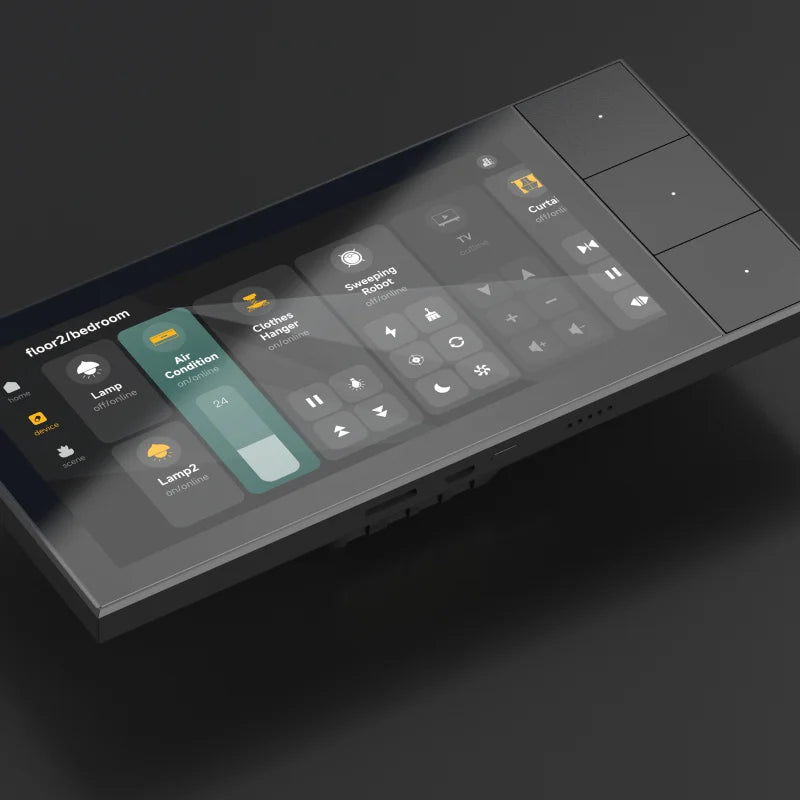

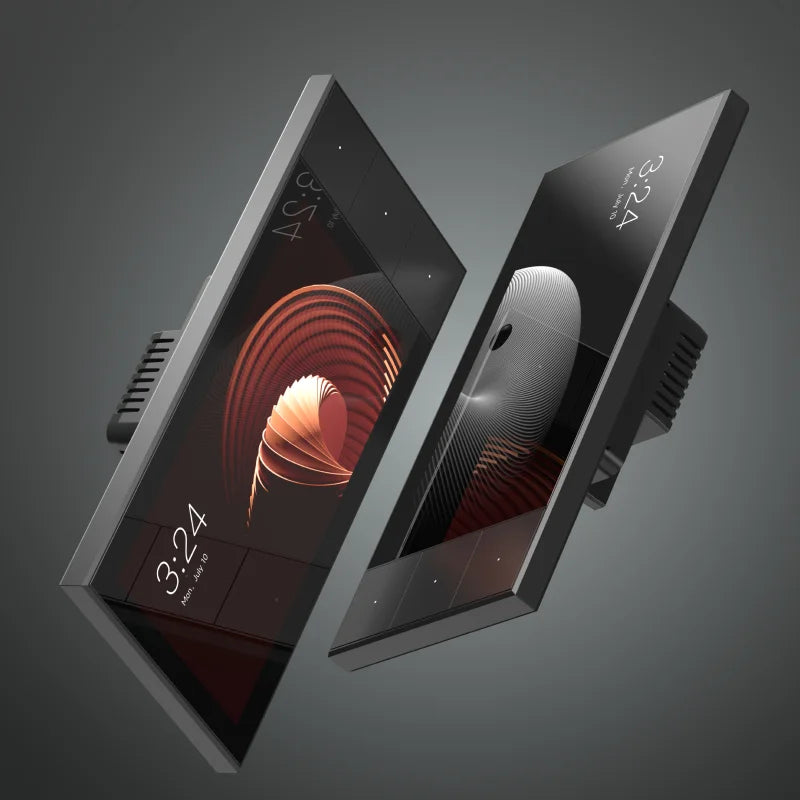

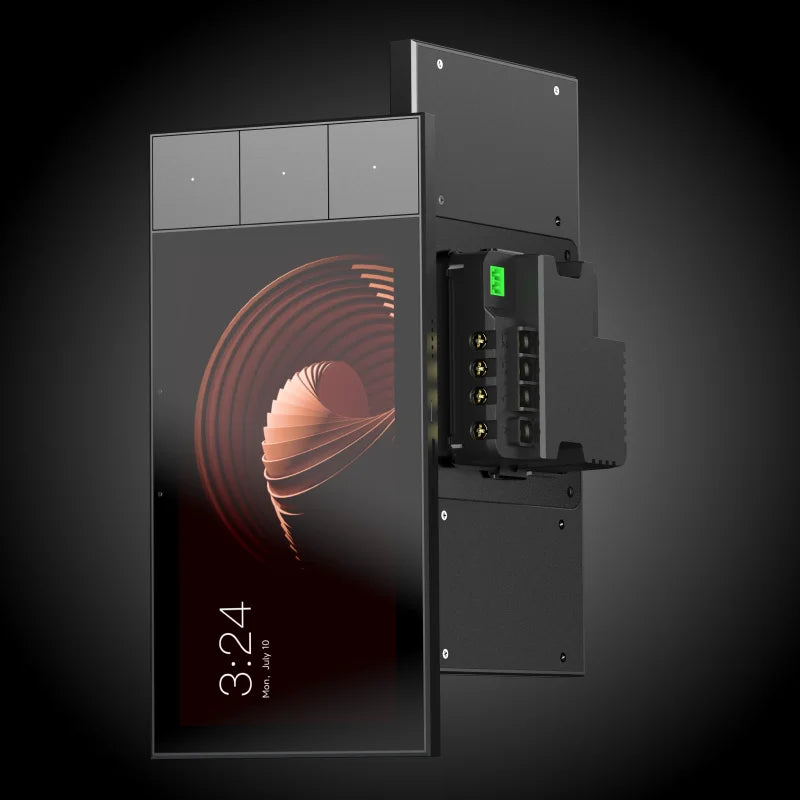

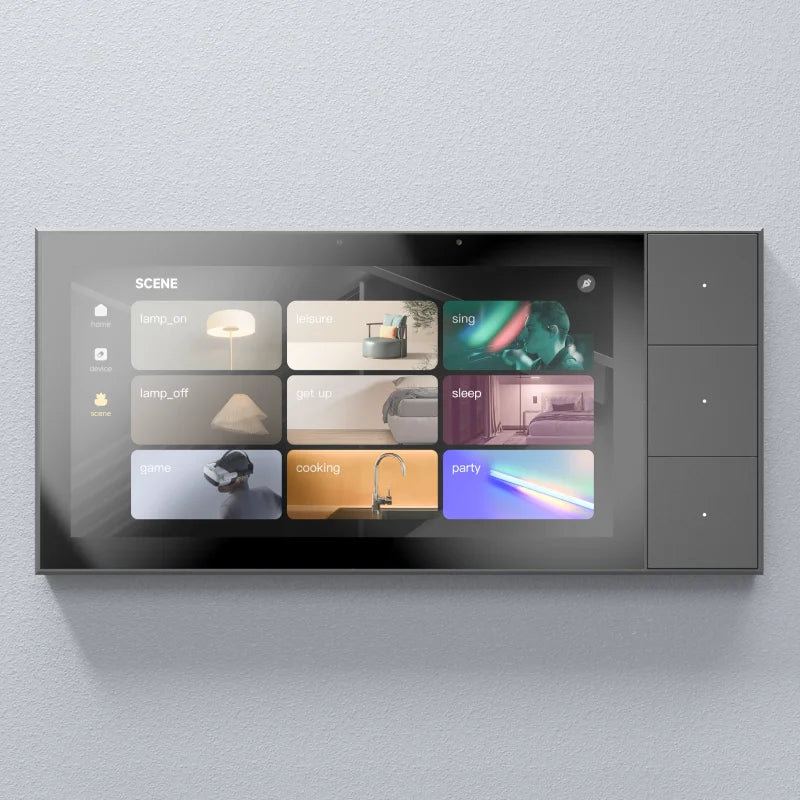

 Tuya Smart Home Devices 6 Inch Multi-functional Touch Screen Control Panel Central Controller For Intelligent Scenes Switch

Product description:

*6 inch ,IPS LCD 720*1440 Android 10.0

*Cpu:Cortex-A53 1.5G

*1GB+8GB ,TF Card up to 32gb

*Wifi+zigbee+Bluetooth+10/100m Ethernet.

*Power supply:110v-230v ,50Hz/AC

*2-way relay

*Microphone array: dual microphone

Feature:

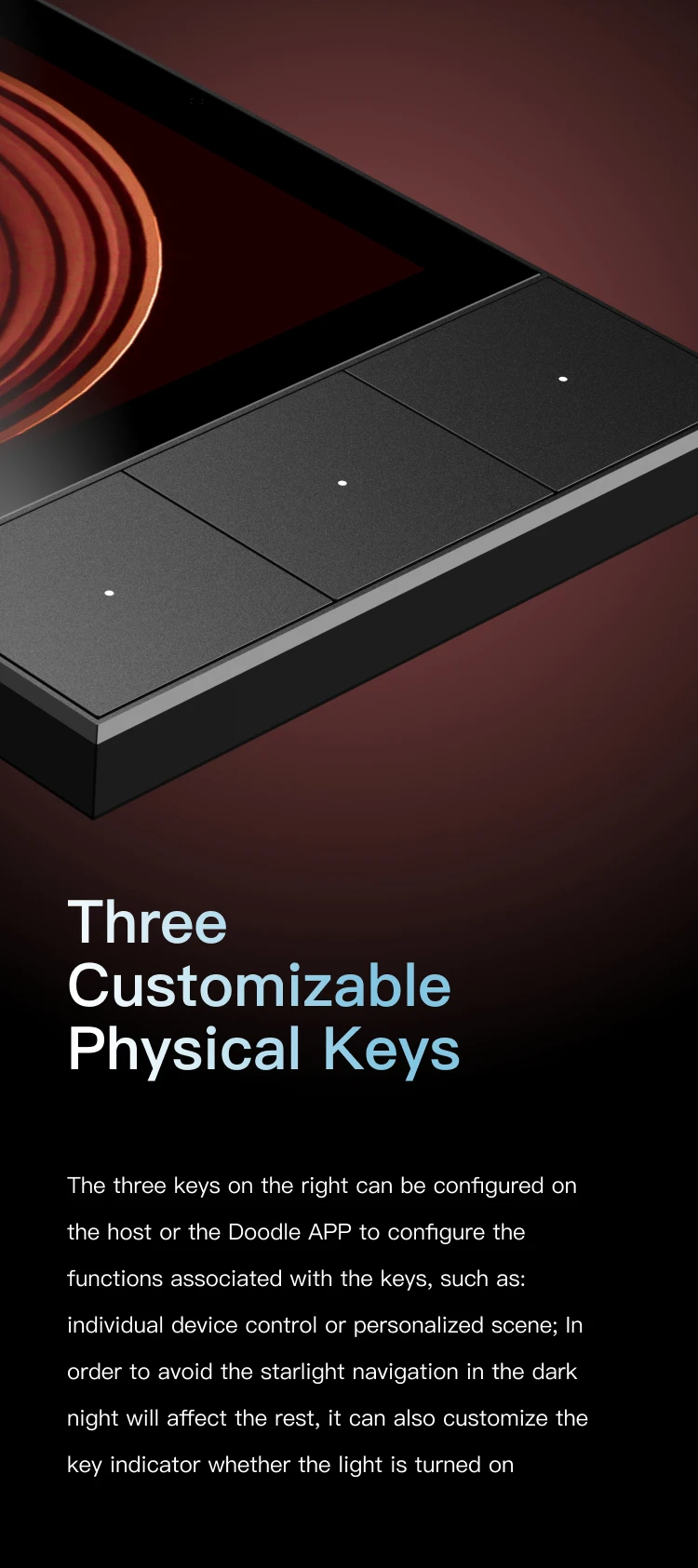

*Three customizable physical buttons (self-configured on the host, tuya app)

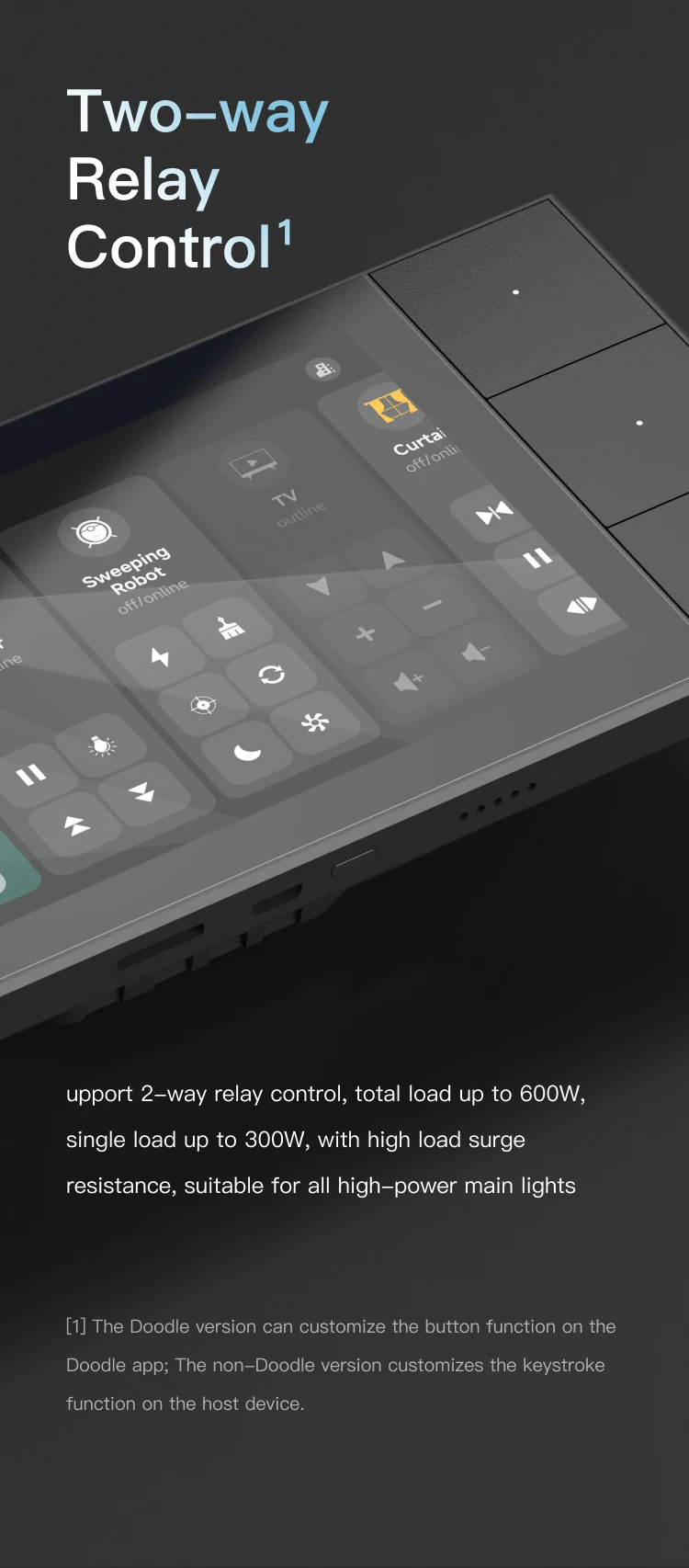

* Two-way relay control, total load up to 600w, single maximum load 300w

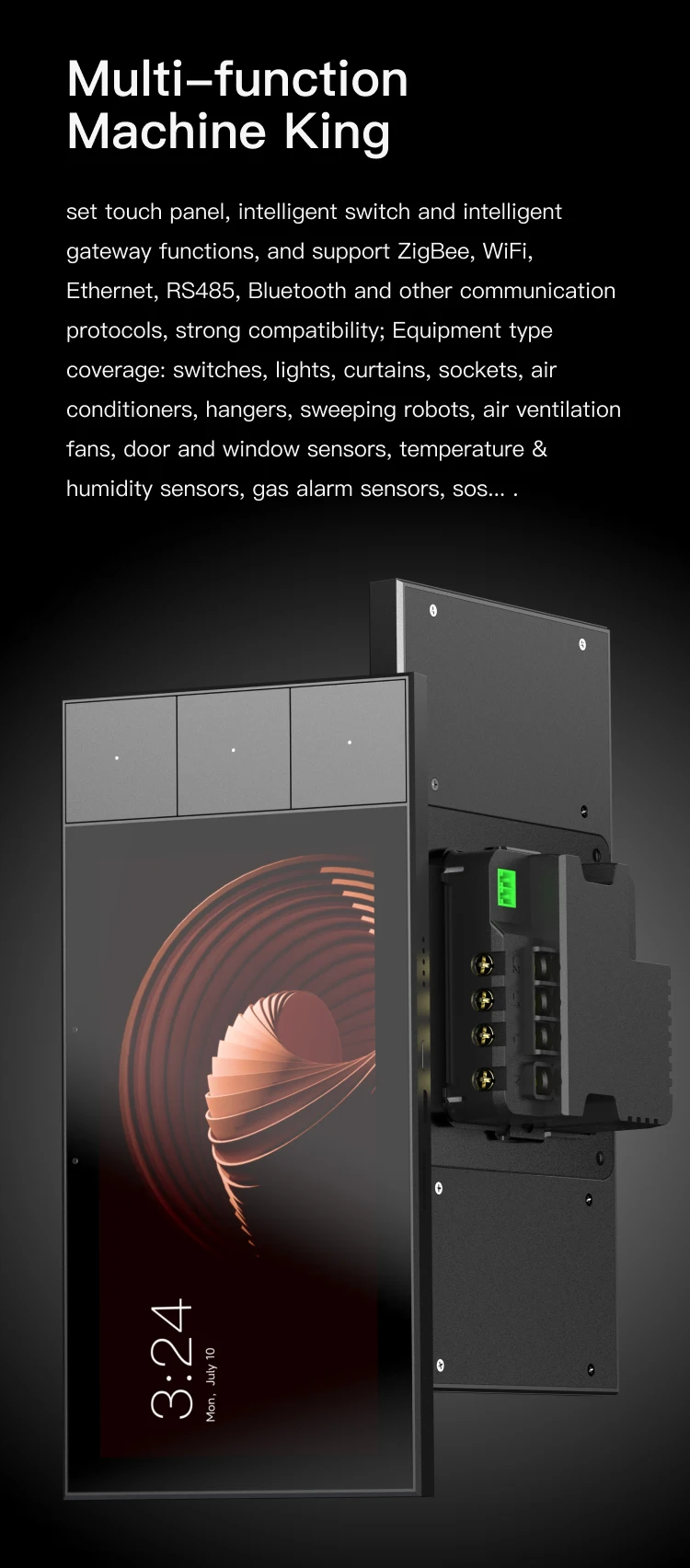

* Multi-function machine king, set touch panel, intelligent switch, intelligent gateway and one

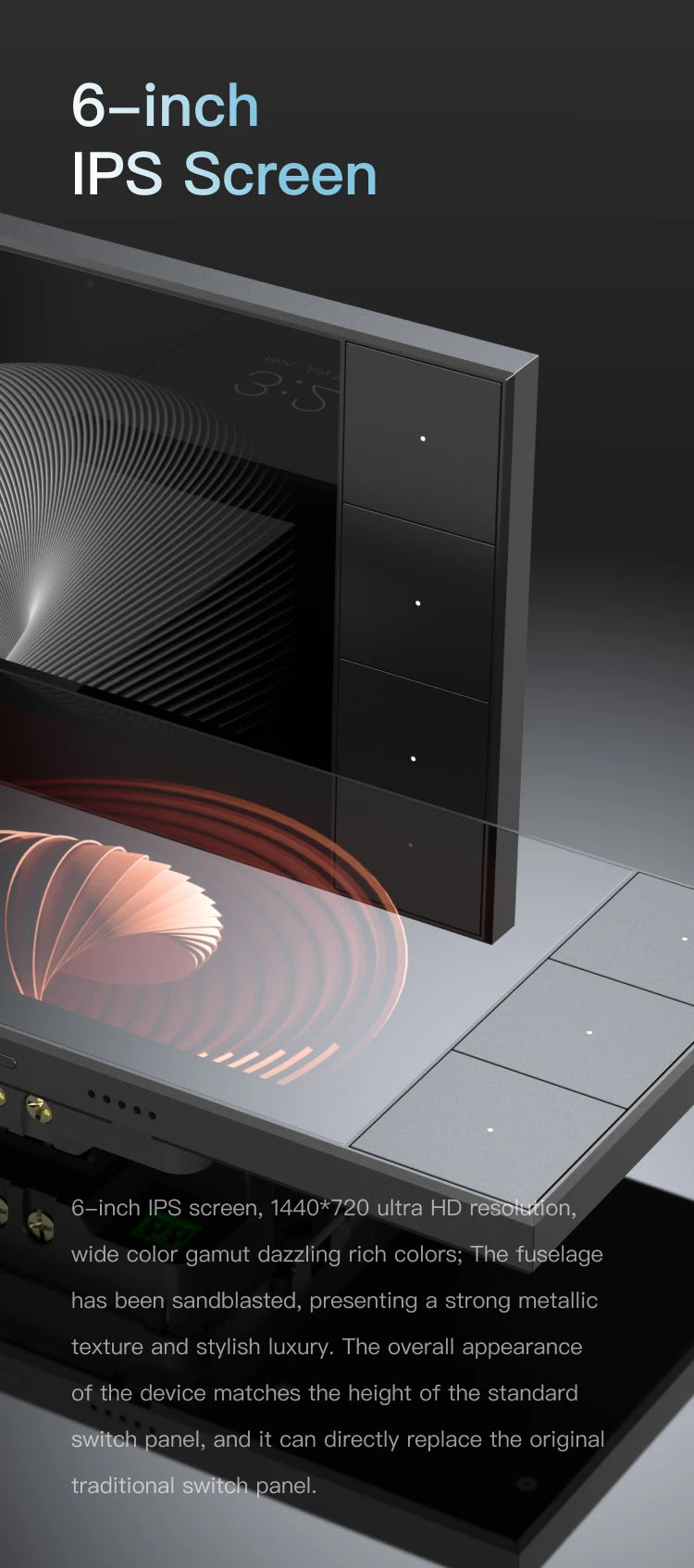

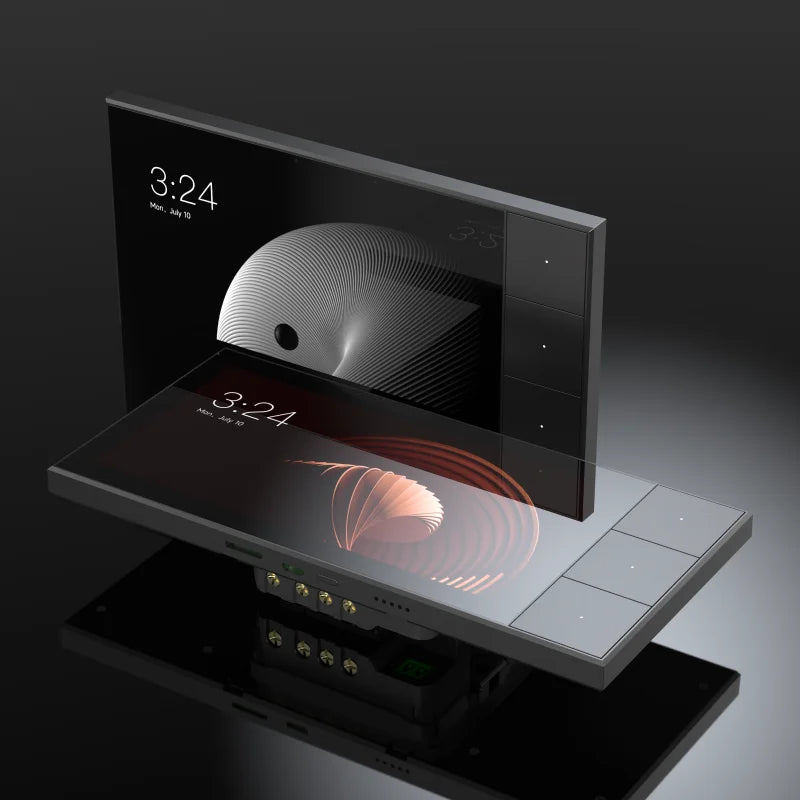

*6inch 1440*720, colorful, sandblasted, and standard switch height match

*Smart gateway: one-click device import, device control, scene editing & control

*Desktop: first screen settings, desktop wallpaper,

*Music playback control: external Bluetooth speakers, Spotify,Alexa voice control

*Intelligent security: access intercom, video doorbell, video door lock

*Life services: weather information, schedule notifications

Package Included:

*Smart central control screen max x1

*Wall bracket x1

*In-wall base box for strong electricity x1

*Screw bag x1

*Reset pin x1

*Product manual x1

Packing :

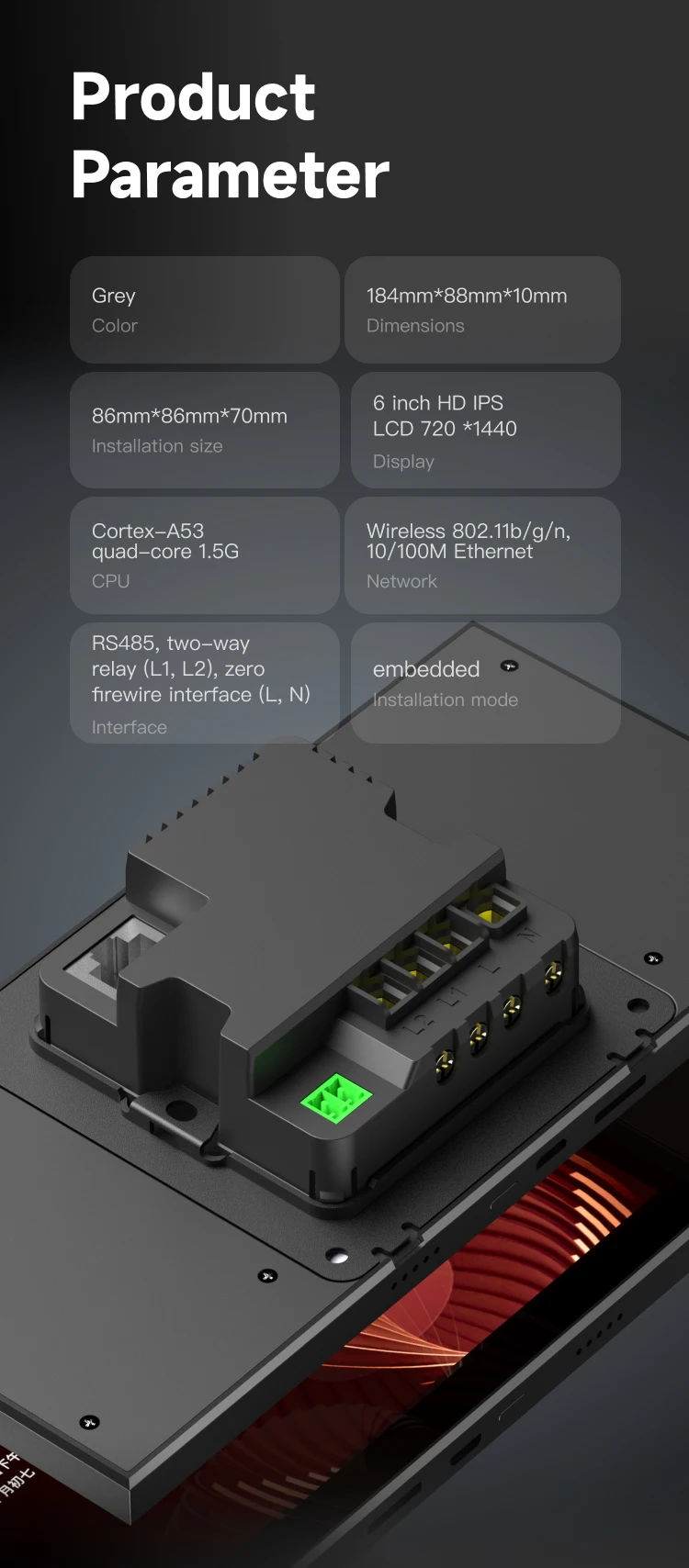

*Size（Appearance :184mm*88mm*10mm

*Size:(Install):86mm*86mm*70mm

*Size:（Packing box）:212*118.5*91mm GW:1.5KGS

*carton size: 51*26.5*24cm 10pcs/ctn.

*NW/GW:6.6/7KGS

FAQ:

Q: Do I need a hub to configure it into APP?

A: No, it is the WiFi smart control panel with no hub required.

Q: Can I trigger the smart scenes that I have added in APP before?

A: Yes,the smart control panel not only can control the smart devices in APP, but also the smart scenes that have been created already.

Q: What can I buy from you?

A: 10 "Smart home control panel: knob + button + touch screen, with two-way relay product

     7 "Touch Smart Home Control Panel Product

6 "Smart home control panel: button + touch screen, with two circuit breakers products

     4 "touch screen center panel: Touch screen with two circuit breakers ；products

4-inch touch screen central control background music host: Bluetooth push music, with power amplifier function product

     Intelligent central control supports Tuya ZigBee, which can control intelligent switches, sockets, lamps, air conditioners, curtains, drying     racks, security, sensing and other equipment in the room.
