GLEDOPTO Smart GU10 Bulb
GLEDOPTO Smart GU10 Bulb
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: GLEDOPTO
Origin: Mainland China
Hign-concerned Chemical: none
Power Tolerance: 5%
Model Number: GL-S-006P
Power Source: AC
Features: ZigBee 3.0+2.4G RF
Usage: HOLIDAY
Light Source: LED bulbs
Certification: RoHS
Certification: LVD
Certification: EMC
Certification: CE
Voltage: 110-240V
Application: Bed Room
Certification: ce
Certification: EMC
Certification: LVD
Certification: ROHS
Item Type: Spotlight
Warranty: 2 Years
Is Dimmable: Yes
Body Material: ABS

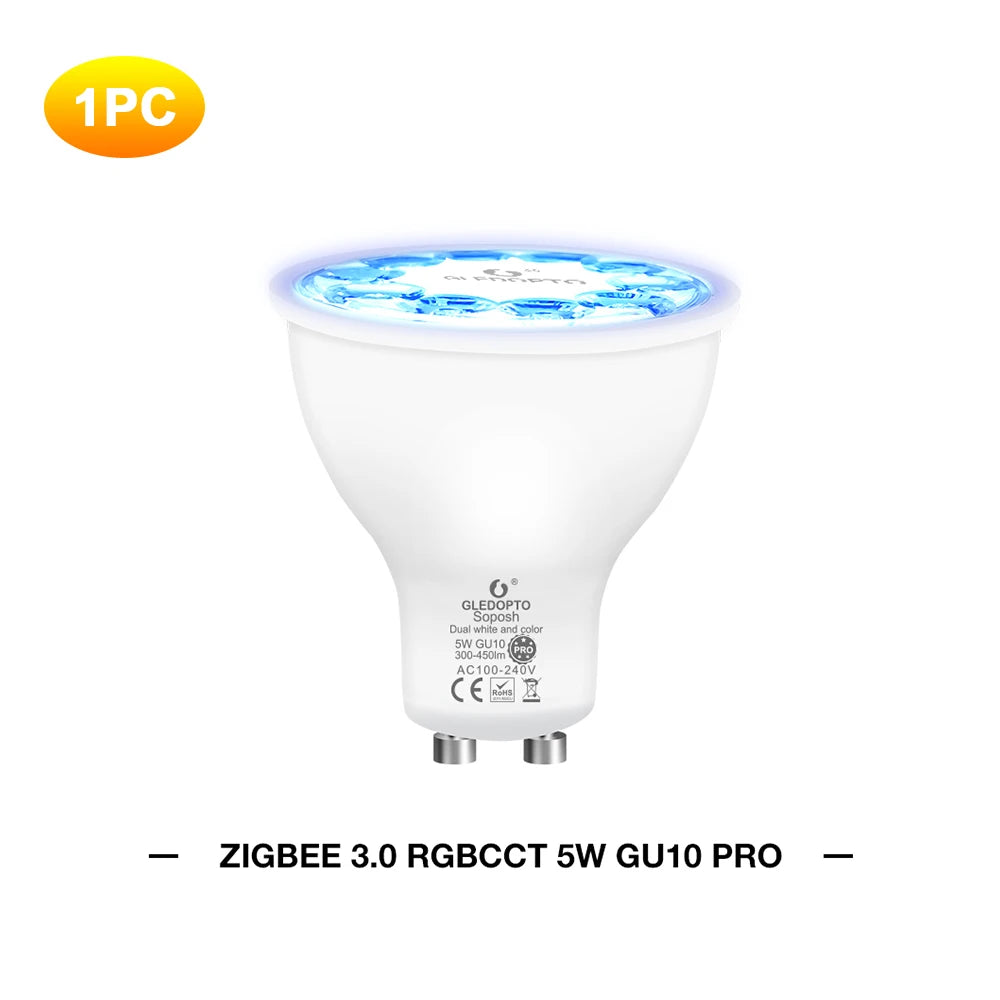

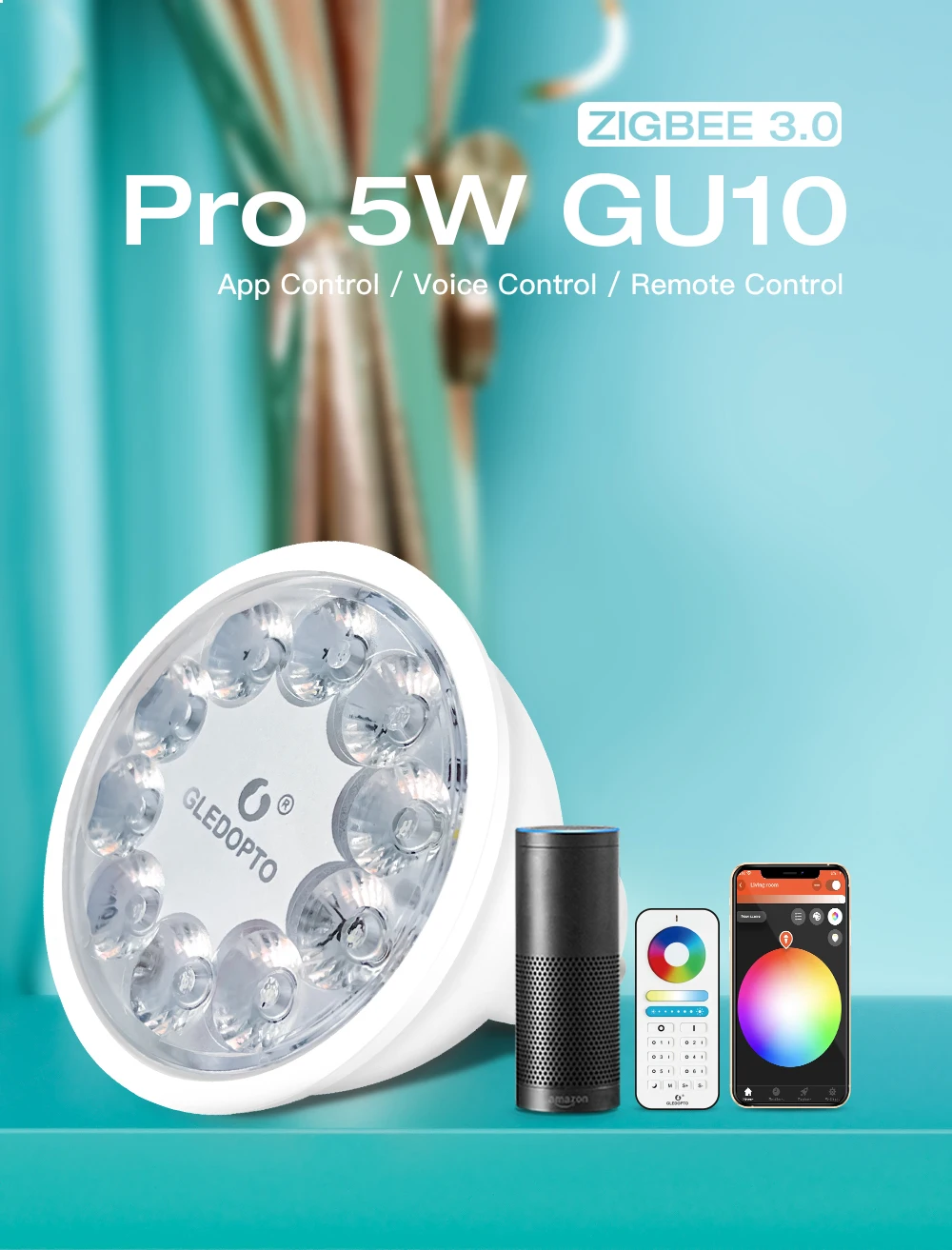

Product Name: ZigBee 3.0 5W GU10 Pro
Color: RGBCCT
Color Temperature: 2200~6500K
Lamp bead life: 50000H
Power: 5W
Size: 49.5*58mm

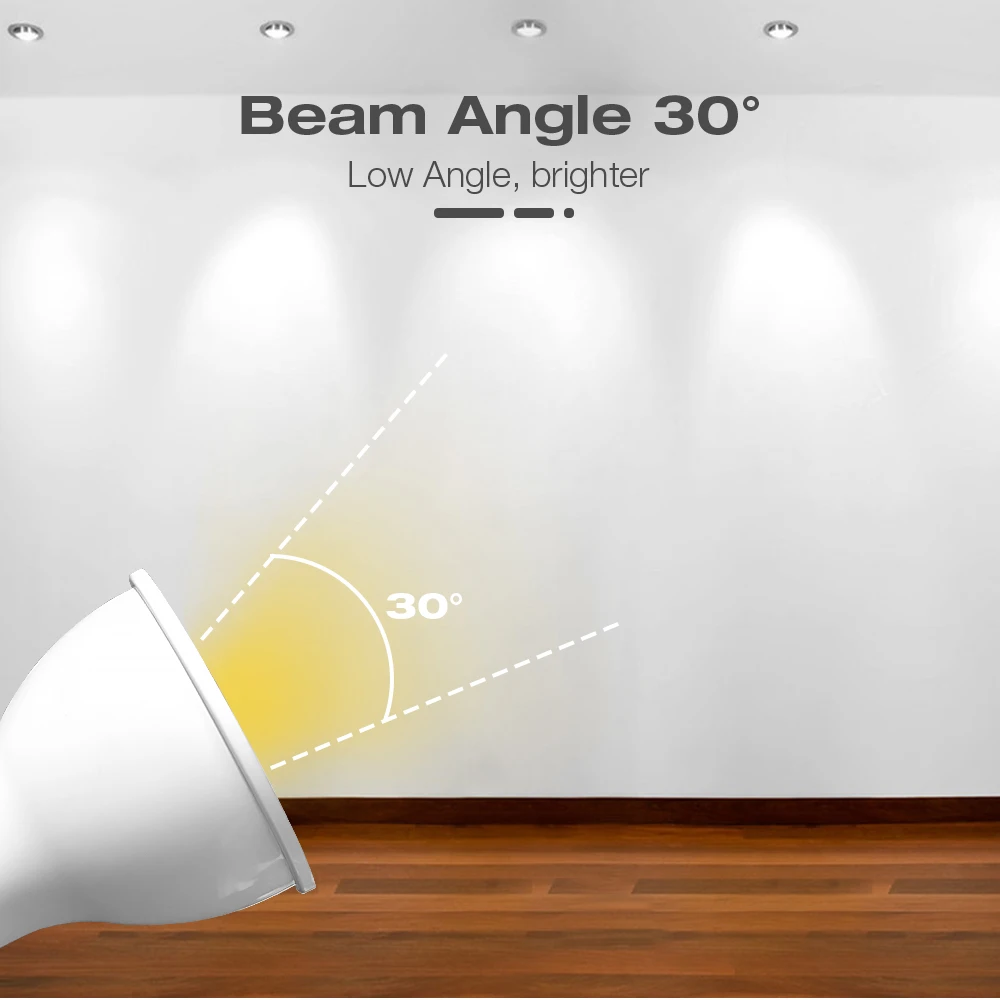

Beam Angle: 30 Degree
Choice: yes
semi_Choice: yes

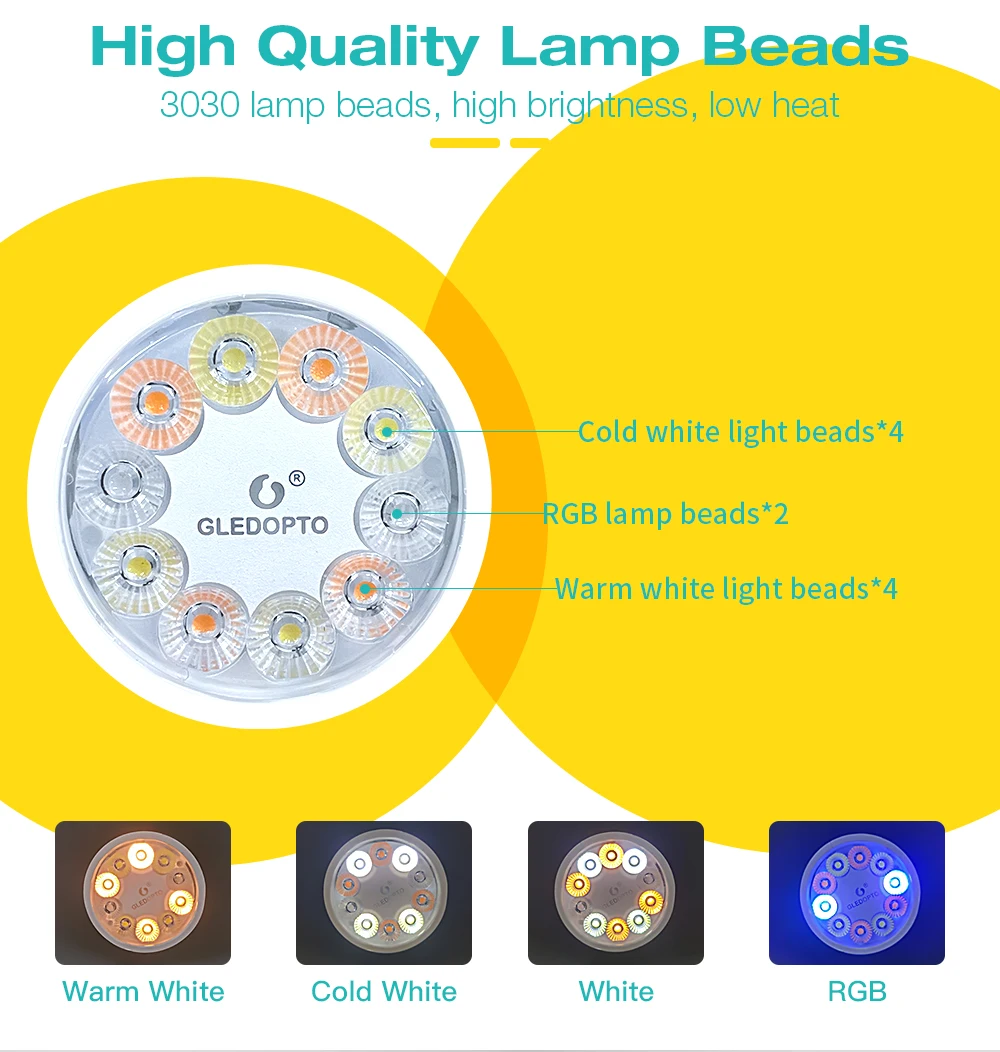

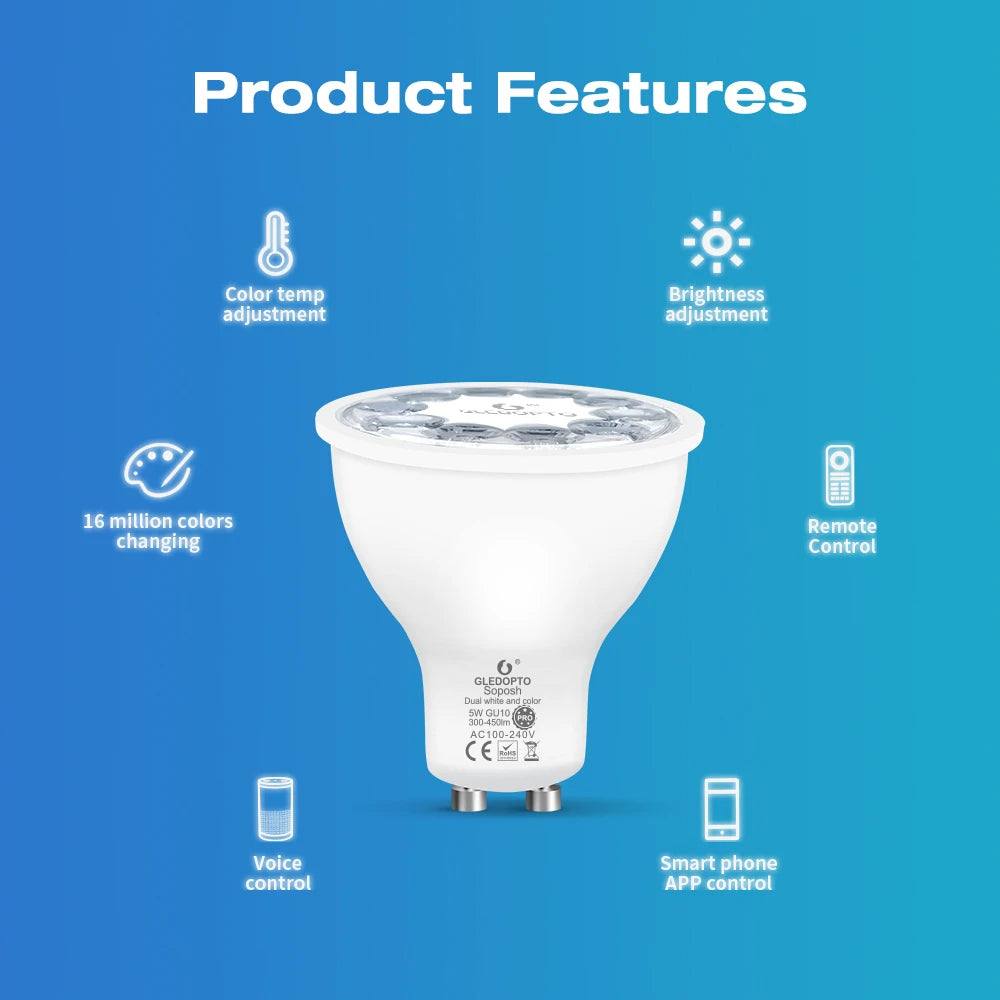

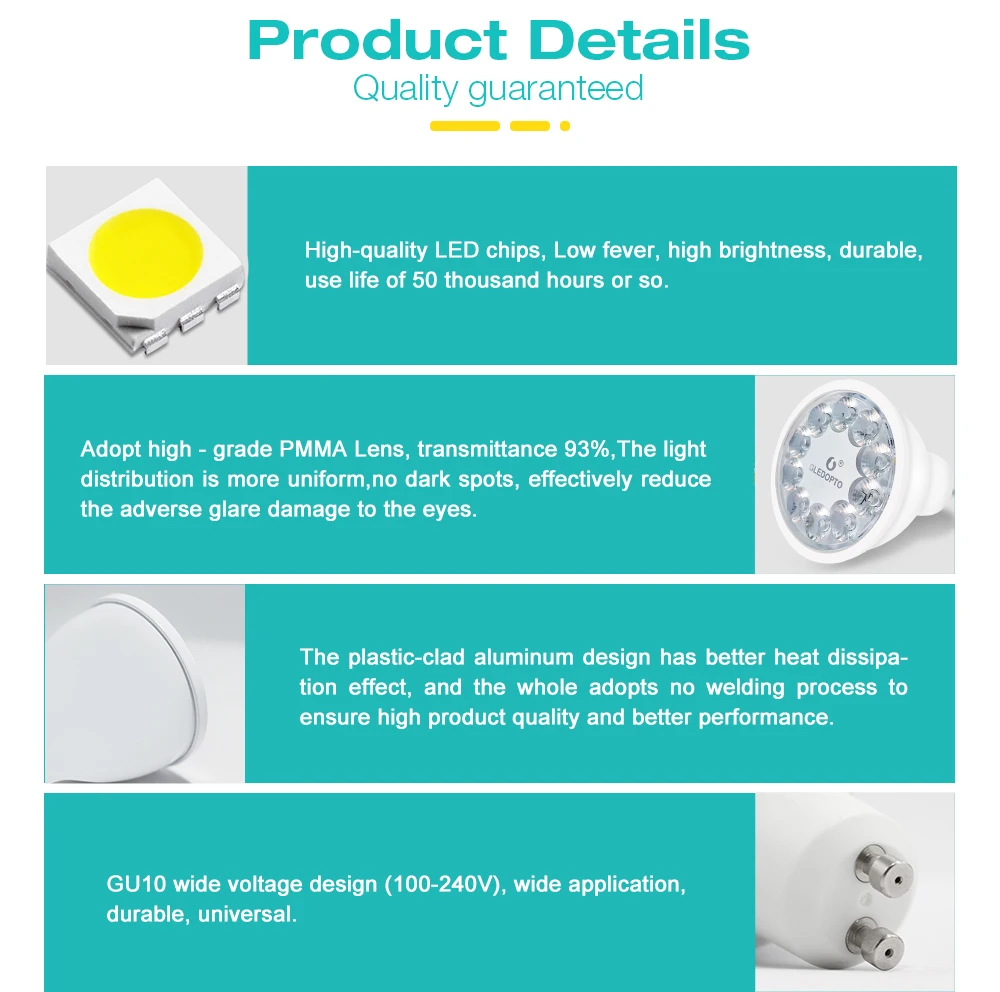

🌟 LED: it’s using high quality LED chips, with low power consumption and good heat dissipation.
🌟 Lens: it's adopted with high-grade PMMA lens that can up to transmittance 93%, so it can reduce the adverse glare damage to the eyes.
🌟 Angle Design: There has 30 degree to choose from.

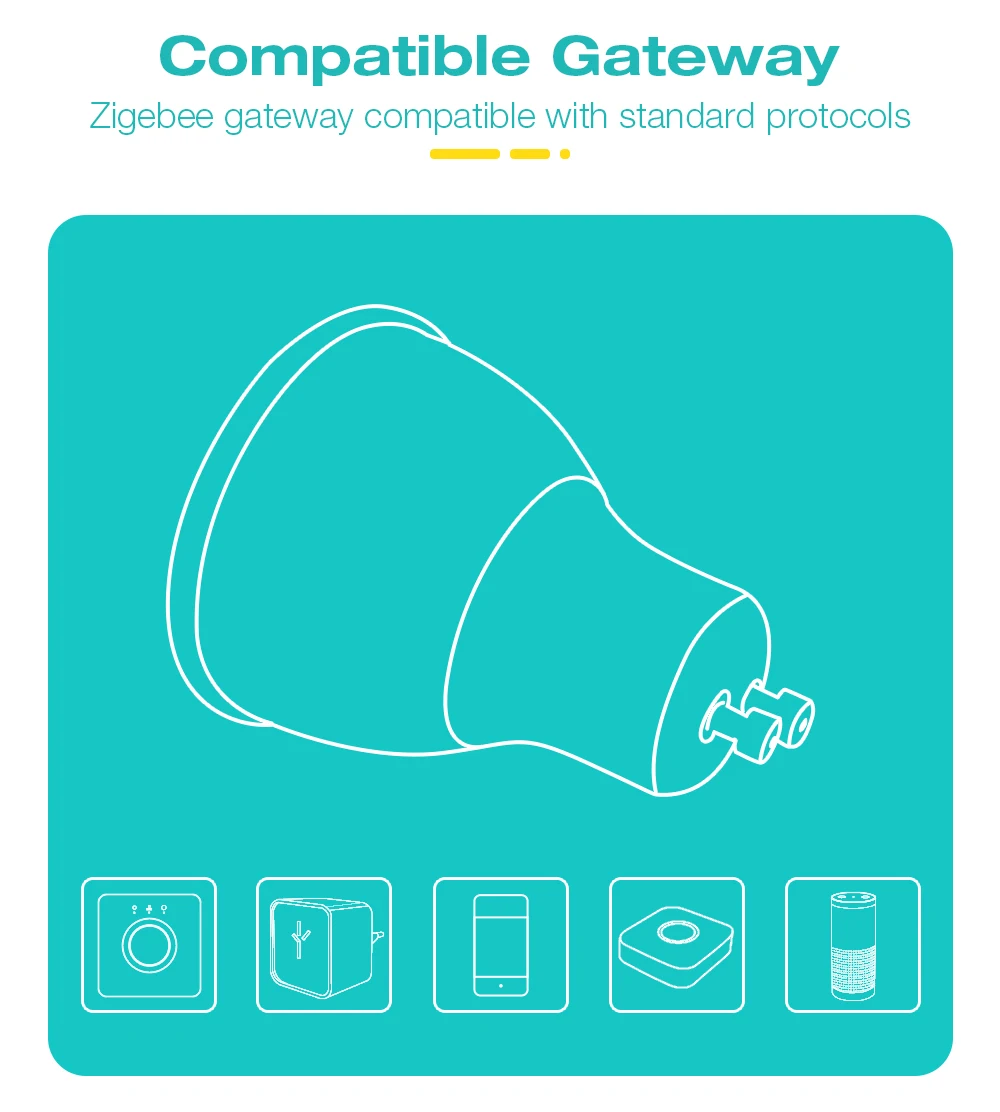

🌟 Compatible With Zigbee Gateway: it's using with zigbee 3.0 standard protocol,such as SmartThings, Tuya, Conbee ect.
🔥 16 million colors for your choice and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.
🔥 There has warm white and cool white(2200-6500K) to choose from,which can experience the more delicate atmosphere lighting effect.
🔥 When adjusting the brightness from 1% to 100% that you want, making a vibrant atmosphere anytime.
🔥 Control ways:
① APP Control: Requires to zigbee gateway such as SmartThings, Tuya ect., support APP control in Android/IOS Phone;
② Voice Control: support Amazon Alexa/Google Home/Homekit via zigbee hub;

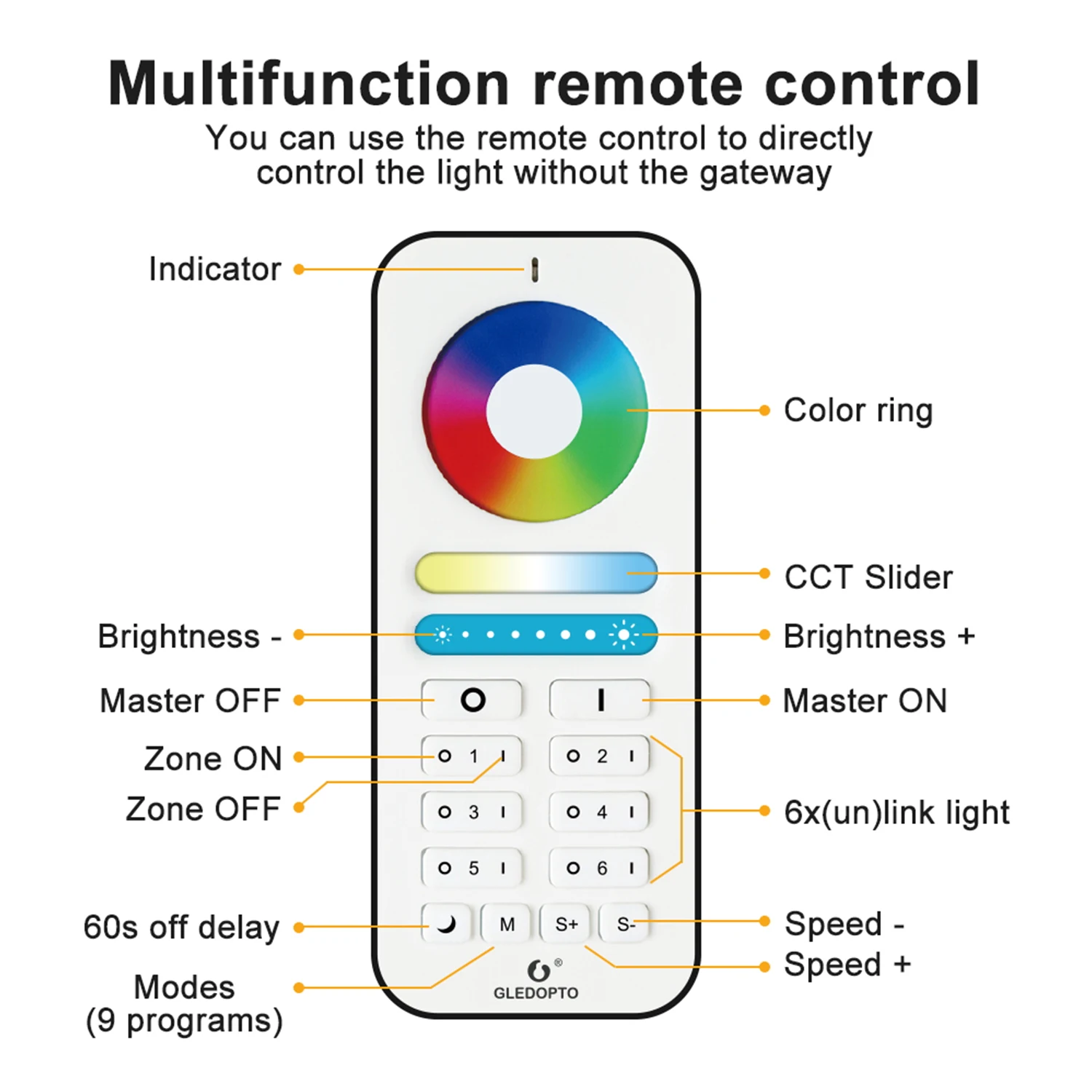

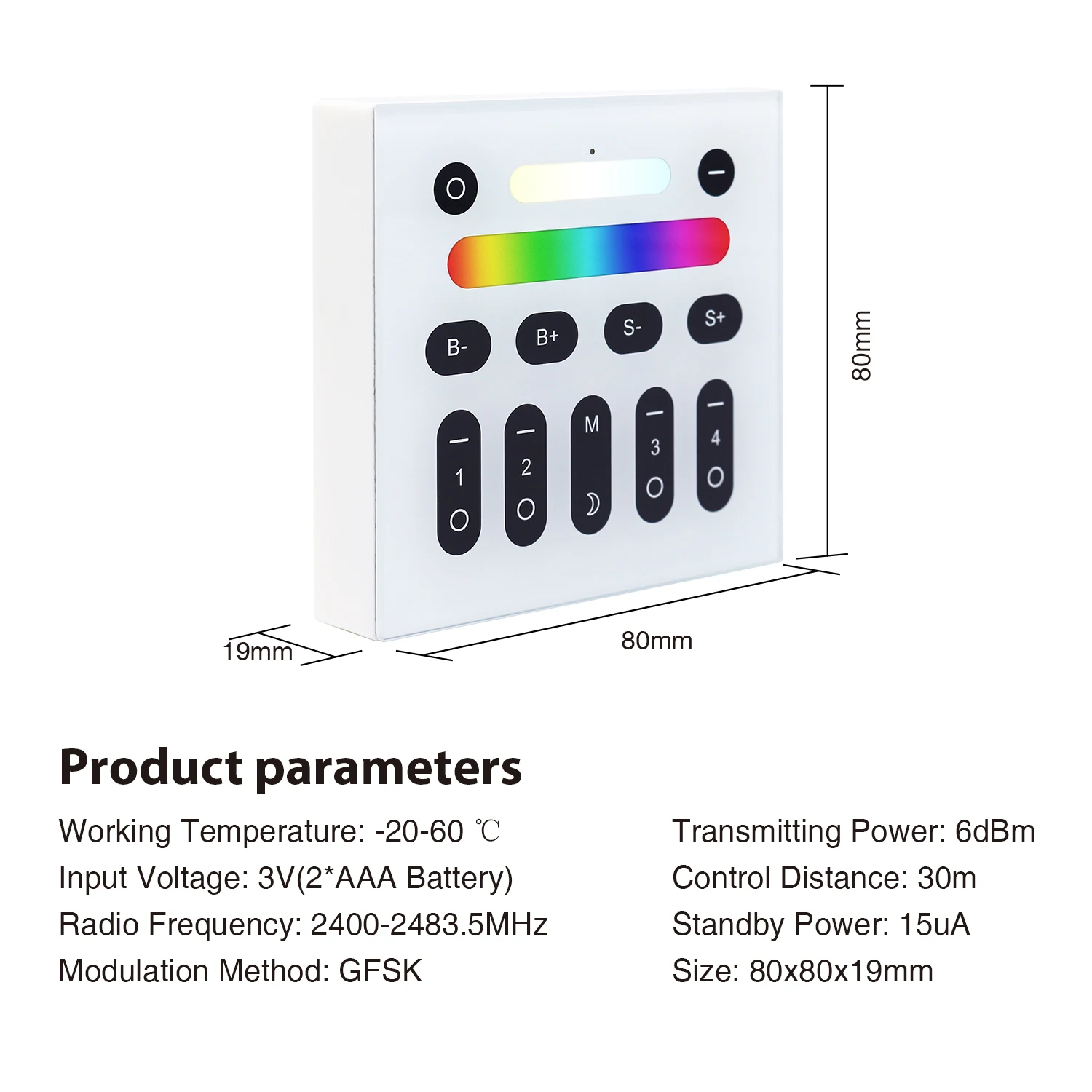

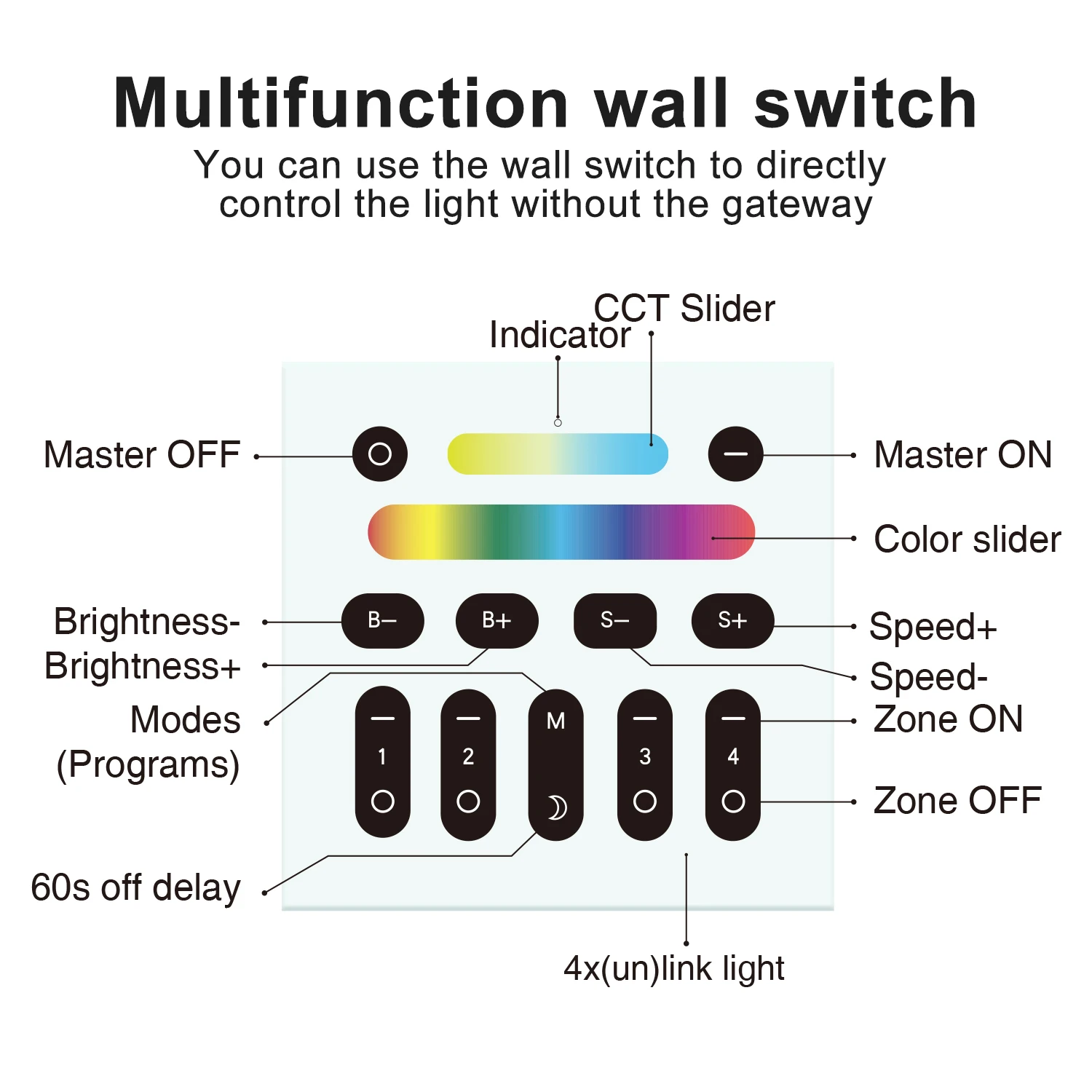

③ Remote Control: support 2.4G RF remote control/wall switch directly, without zigbee hub;
🔥 Group: Create rooms, divide your strip lights into one room( to control lights together) or several rooms(to control lights in different room separately).
🔥 Multiple scenarios: Set the Scene that can adjust the different lights atmosphere in your room according to your needs.
Q&A or more info, please contact us on line, and we will answer you in time.

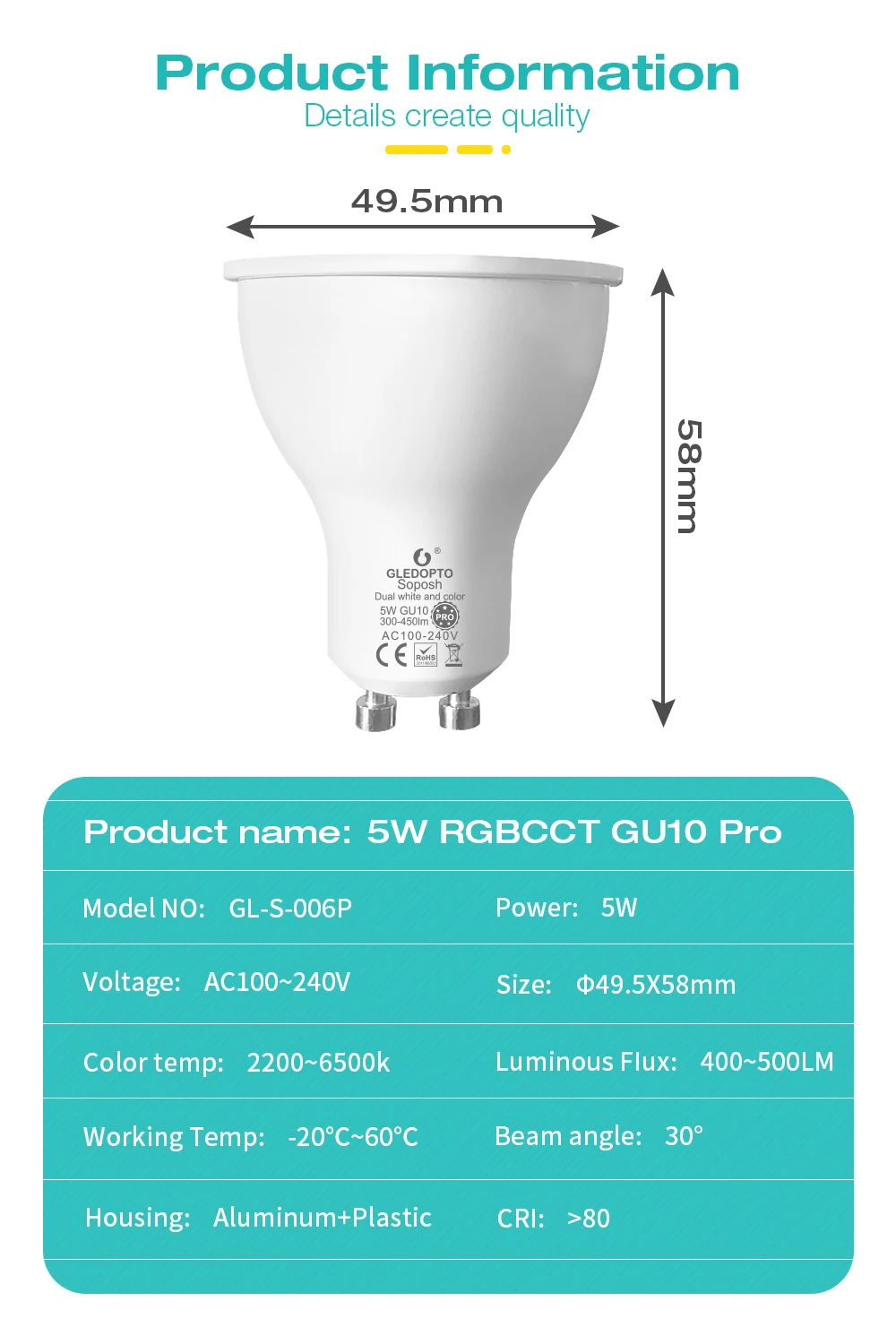

Product Name: Zigbee 5W GU10 LED Spotlight Pro
Model No.: GL-S-006P
Power: 5W
Voltage: AC100~240V
Size: Diamters 49.5*58mm
Color Temperature: 2200-6500K
Luminous Flux: 400-500LM
Luminous Efficiency: 90LM/W

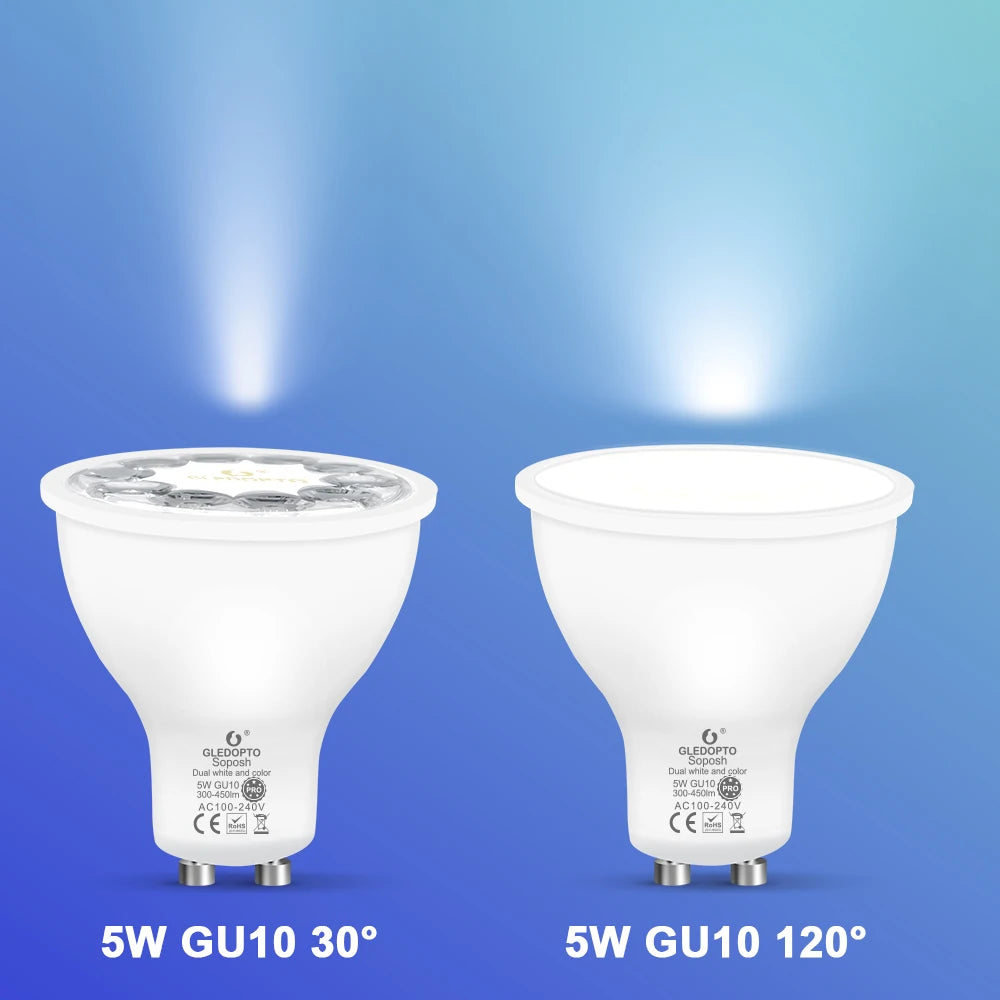

Beam Angle: 30°/120°
Working Temperature: -20°C to 60°C
CRI: >80
G.W.: 0.11KG
Warranty: 2 Years
1PC * ZigBee 5W GU10 Spotlight Pro
1PC * User Manual
In this manual we will explain the connection of wires and the connection with a ZigBee LightLink Gateway.
These devices works with many ZigBee Light Link Gateways like: Amazon Echo Plus.
Installation:
1. Turn off the Power.
2.Plug in the bulb.
3.Now you can connect it with the gateway.
Connection with Gateway:
1. Connect the LED product to the controller see section “Installation”.
2. Start the device searching on the ZigBee Light Link Gateway, it could take some time.If the Gateway does not find the device, plug power off/on or make a reset.
3. The Gateway found your device and you can assign it to the differentrooms/zones/groups.
4. Now you can use the device.
Reset:
1. Switch on your device.
2. Now switch off and on within 2 seconds.
3. Repeat off/on four times.
4. Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.
