SPECIFICATIONS

Brand Name: CTVS

Display Ratio: 4:3

Bracket Type: other

Hign-concerned Chemical: none

Display Size: 9.7"

High-Dynamic Range: none

Resolution: 2048 x 1536

Screen curvature: none

Origin: Mainland China

Horizontal Viewing Angle: 85°

Vertical Viewing Angle: 85°

Interface Type: Fast Ethernet

Screen Type: LED

Built-in Speaker: Yes

Brightness: 250cd/m

Feature: Speaker

Feature: Touch Screen

Feature: Building in Camera

Contrast Ratio: 900:1

CPU: Rockchip rk3566 quad core A55 processor, clocked 1.8G

RAM: 4GB

ROM: 32GB

Resolution: 2048*1536P

Operation system: Android 13 system

Camera: 5MP

Color: Black

Touch screen: 10-Point capacitive touch

Panel: 9.7 "high-definition full view screen full lamination

Screen Type: LED

Luminance: 250 cd/m2

Display Ratio: 4:3

Origin: Mainland China

Battery: No built-in battery

Horizontal Viewing Angle: 85°

Interface: Type-c, I/O Port, I/R Port, Relay Port, RS-232/RS485 Serial Port, DC IN, RJ45

Vertical Viewing Angle: 85°

Viewing angle: 85/85/85/85(L/R/U/D)

LED light strip: RGB

Microphone: Four microphones

Speaker: 2*2W BOX chamber horn

Contrast Ratio: 900:1

WIFI: 802.11a/b/g/n/ac/ax(WiFi 6E),802.15.4/Thread

BT: Blutooth 5.3

Zigbee Protocol: Supports Zigbee protocol device connection

Matter Protocol: Supports the connection of Matter protocol devices

Ethernet: 100M/1000M ethernet

Relay port: Control home devices that support Relay connections

I/O port: Input (output) ports between equipment and external devices

IR port: Used for infrared remote control, with an external plug-in receiver, which can control the device

RS-485 Serial port: Communicating with RS485 devices

RS-232 Serial port: Communicating with RS232 devices

RJ45: Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4,25.5W )

Type-C: USB2.0 supports OTG functionality

Power jack: DC power input

Video format: MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.

Audio format: MP3/WMA/AAC etc.

Photo: jpeg

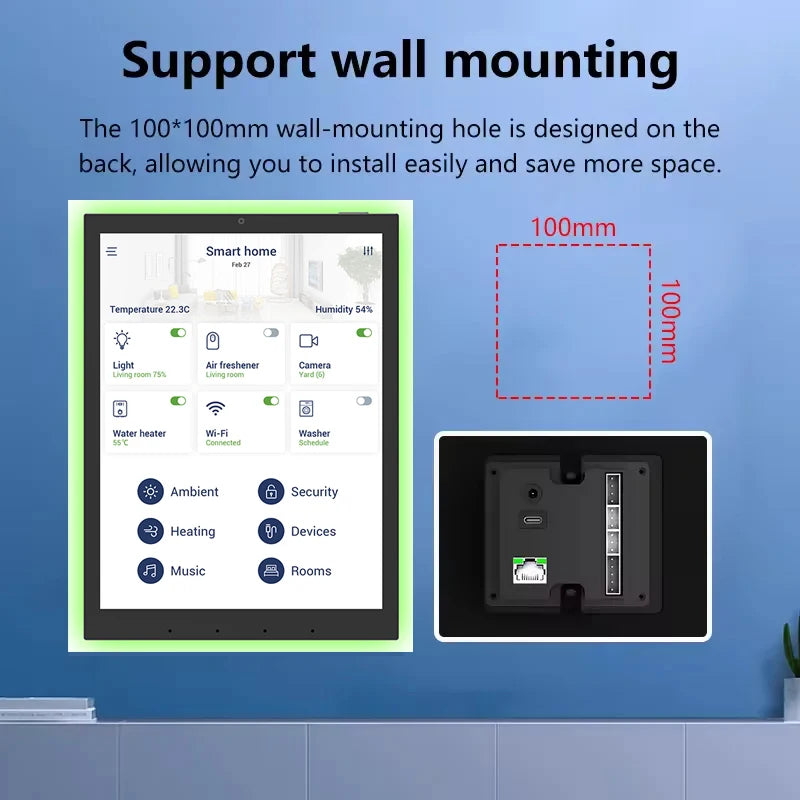

Usage: Wall hanging (standard accessory)

Working temp: 0-50degree

Choice: yes

semi_Choice: yes

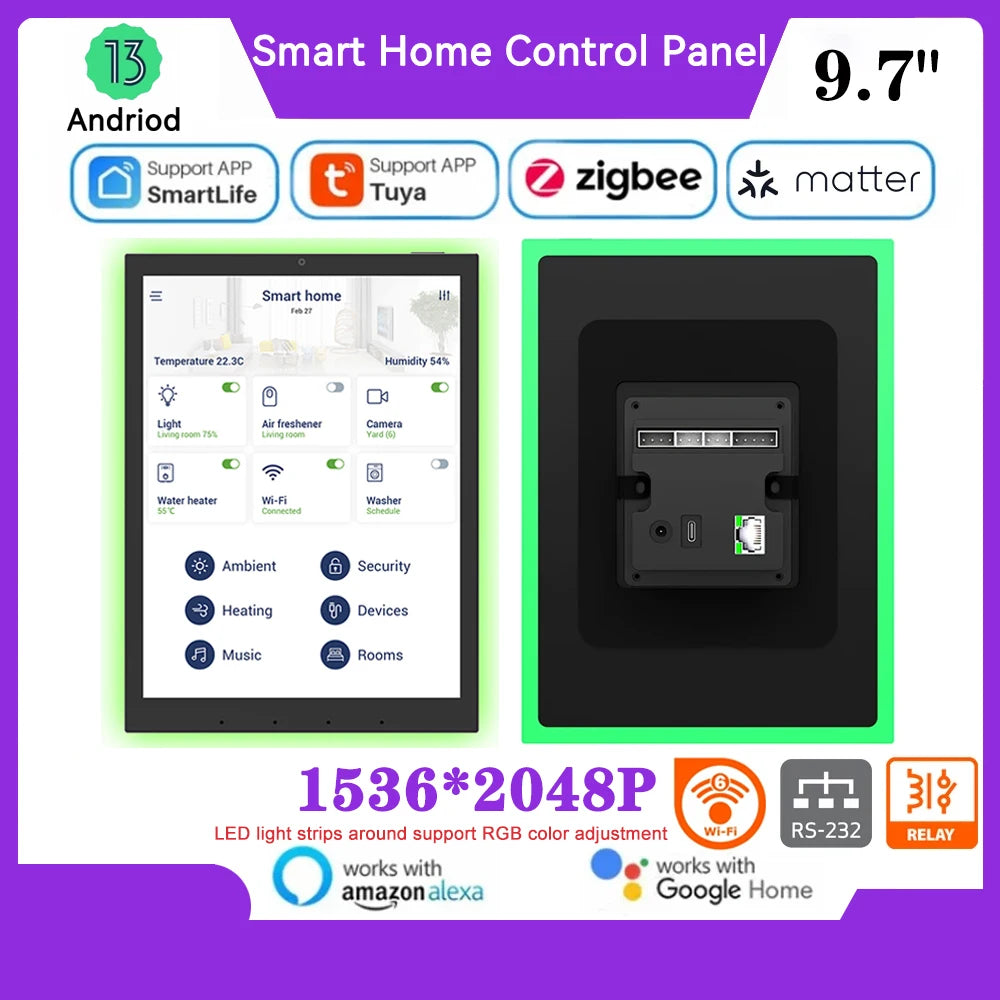

9.7-inch Smart Home Touch Panel Controller



Product Features

1.9.7 inch capacitive touch screen, high-definition full view screen full lamination,1536*2048P 2K resolution

2. Android 13 OS, RK3566 processor, 4GB RAM +32GB ROM,5MP camera

3. Support WIFI 6E / 1000MB Ethernet /Blutooth 5.3

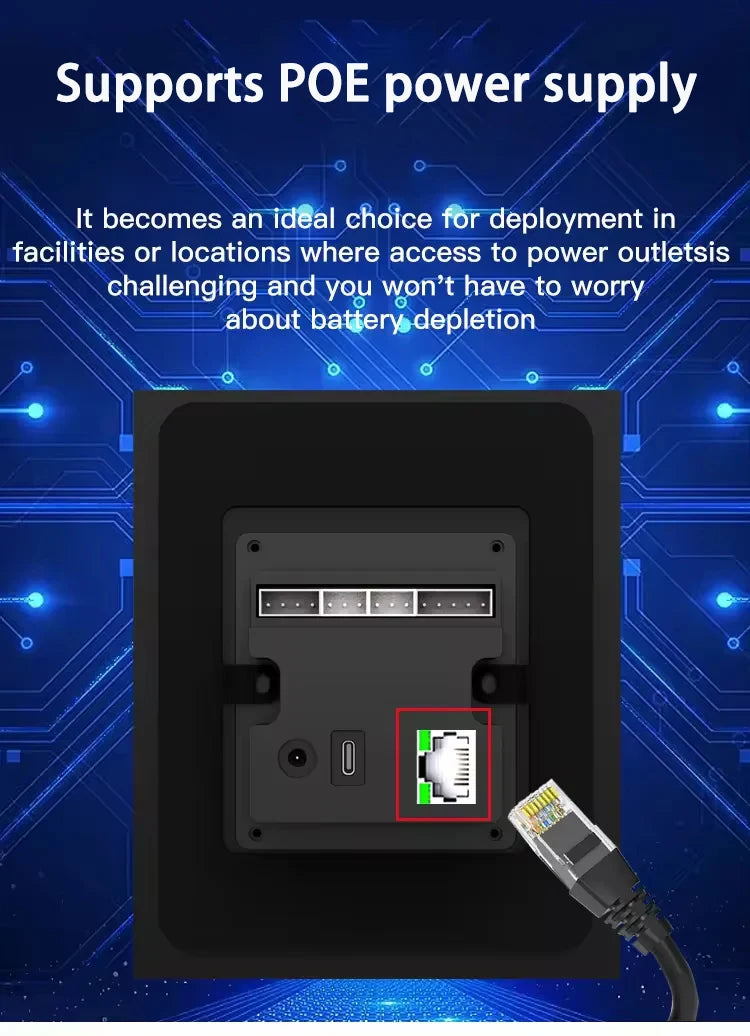

4. Support RJ45 POE power supply

5. Support I/O, IR, RS-232, RS485 serial protocol supported

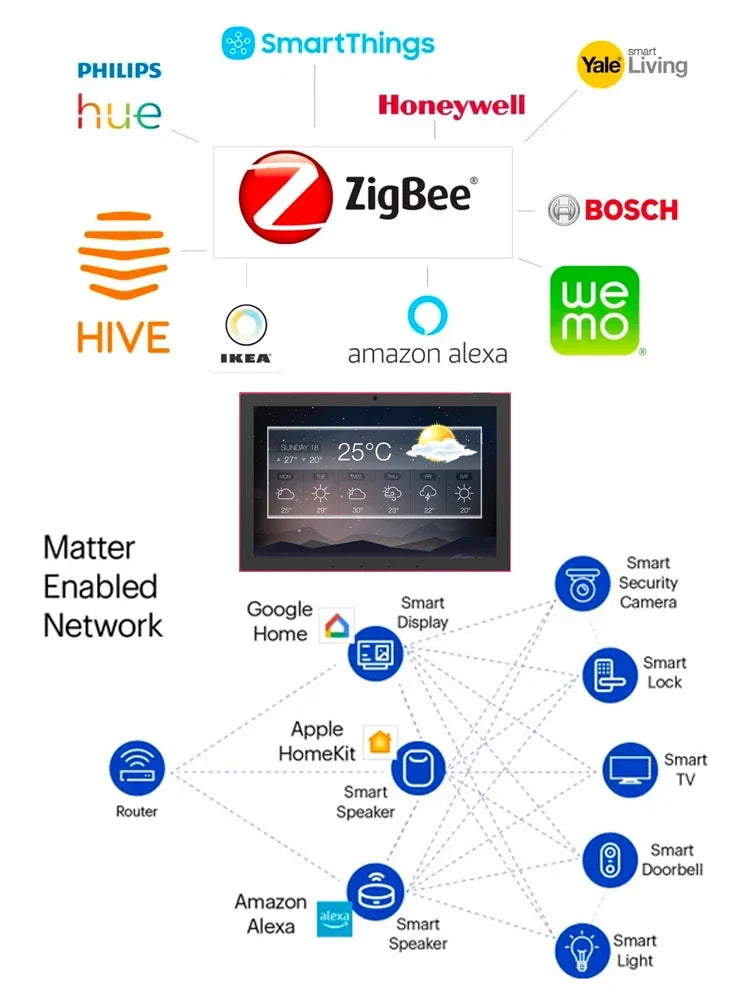

6. Support Zigbee protocol device connection



7. Support the connection of Matter & Thread protocol devices

8. Inbuilt Light Sensor, Temperature and Humidity sensor

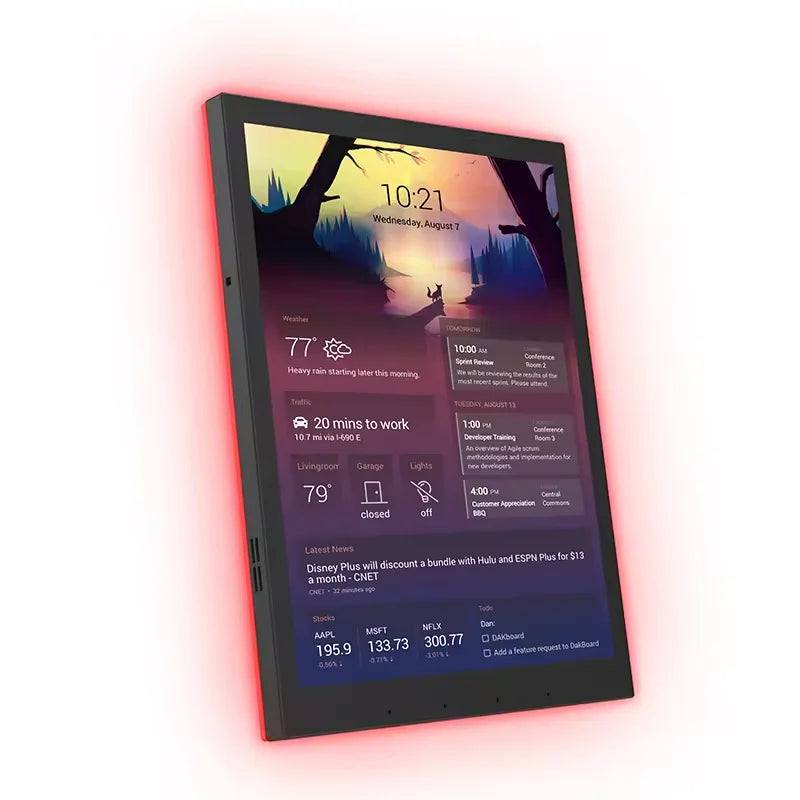

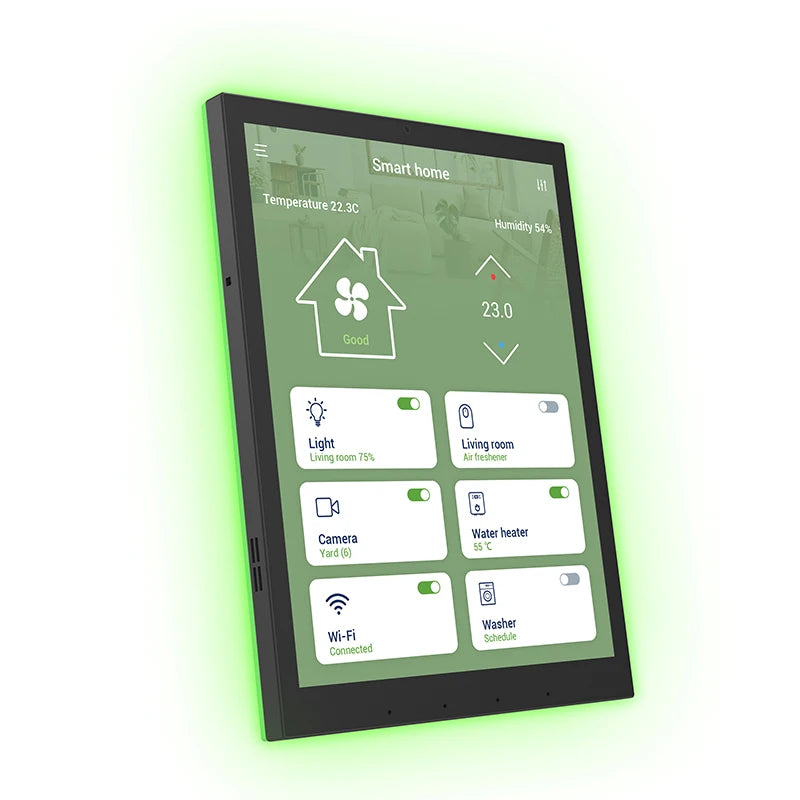

9. 4 LED light bars inbuilt



10. Display mode: The screen can be displayed in horizontal or vertical mode

11. Supports Google services and has a built-in Google Play Store, where you can download Tuya, Home Assistant, Smart Life, Smart Things,and other smart applications.



Product Details







Product Specifications



# CPU: RK3566, Quad-core Cortex A55 1.8Ghz,

#Operating System: Android 13

# Memory：4GB RAM+32GB ROM

# Screen: 9.7 inch 1536*2048P

# Screen Brightness: 250 Cd/㎡

# Touch panel: 10-points capacitive touch

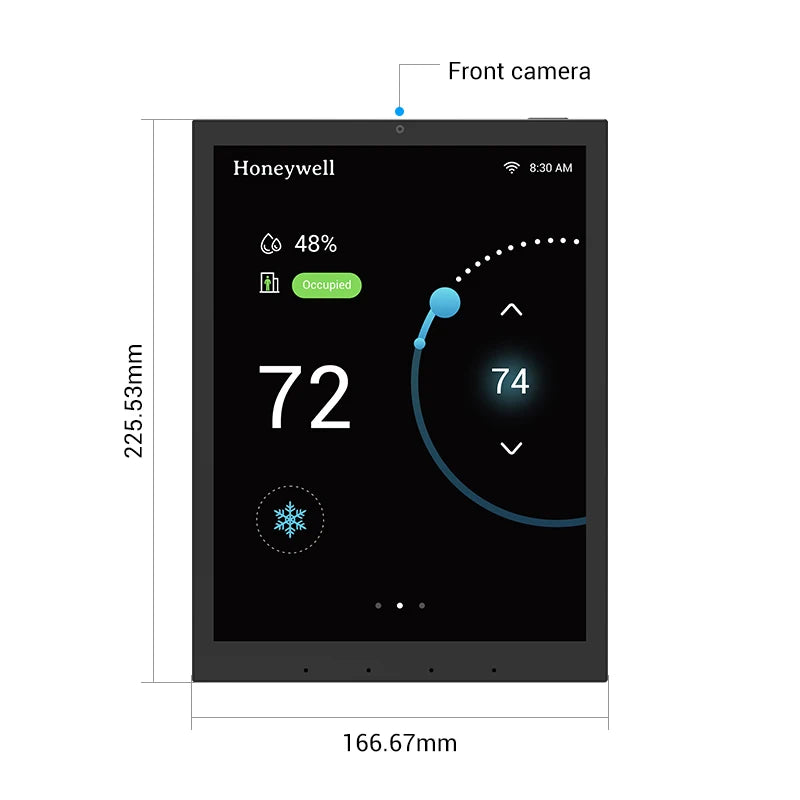

# 5MP Front Camera

# Network: WIFI+BT+Ethernet

# Speaker: 2*2W

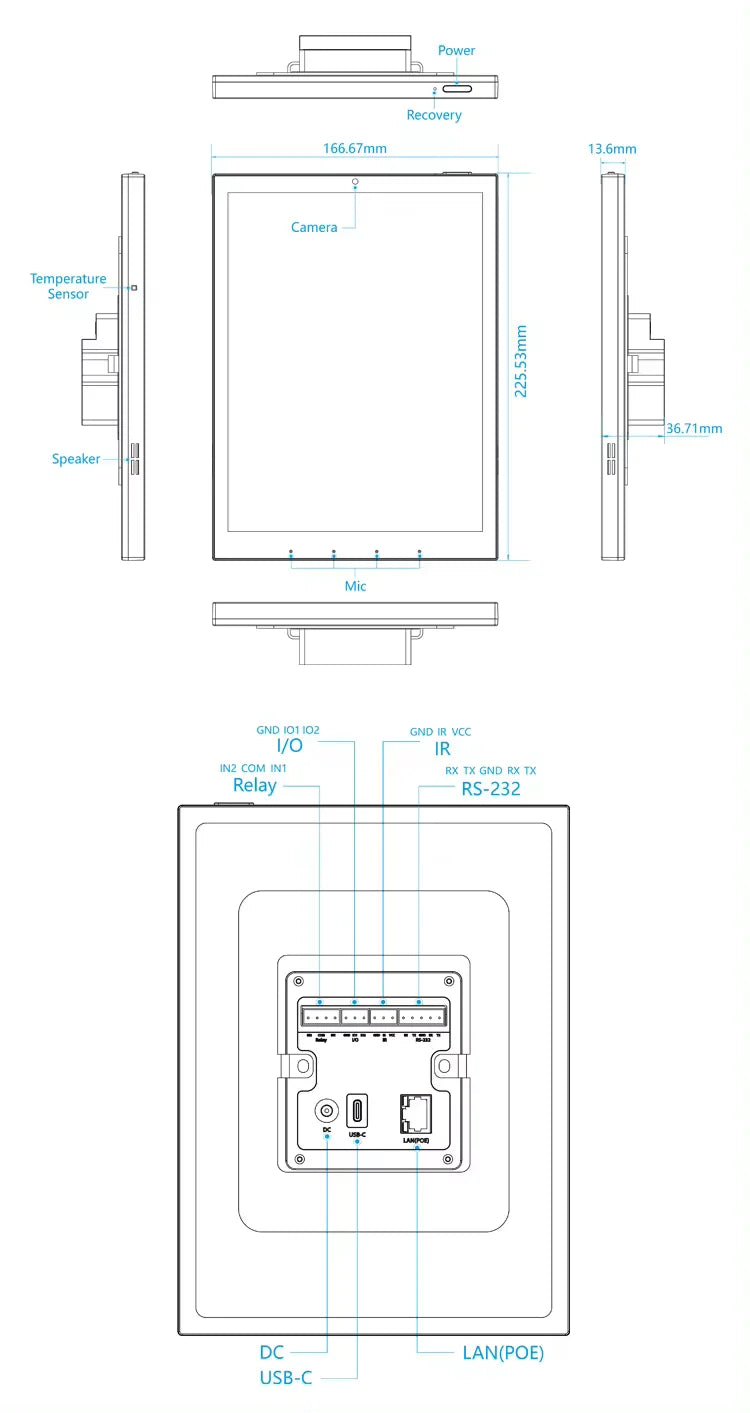

# Interfaces: USB, I/O Port, I/R Port, Relay Port, RS-232/RS485 Serial Port, DC IN, RJ45





Question and Answers



Q1: If the device screen is rotatable?



A1: Yes, the device screen is rotatable, you can go to the Settings-->Display--> Advanced, open the Auto-rotate screen or set the rotate degree.





Q2: How to power the device?



A2: The screen can be powered by POE, or direct DC input.





Q3: If the wall mount plate is provided?



A3: Yes, the wall mount plate is included in the package.

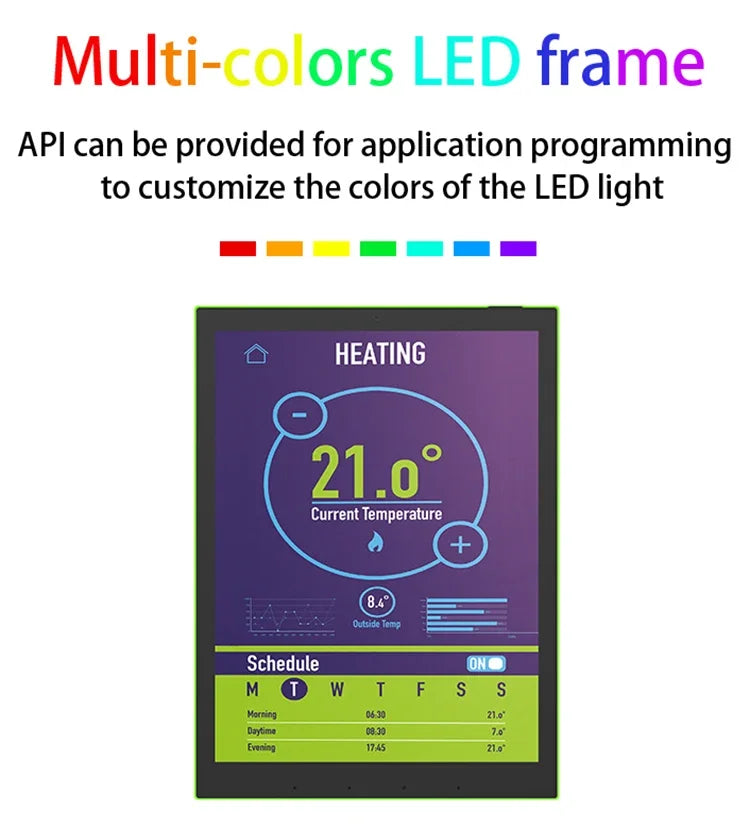

Q4: If the LED light bars can be turned on/off?



A4: Yes, user can use SMT-Test App installed to control the light bars on and off, and change the colors too.





Q5: How to enter the sleep mode?



A5: User can operate Settings-->Display-->Advanced-->Screen timeout and choose sleep mode from never to 30 minutes;





Q6: If Google Play Store is supported.



A6: Yes, this Android 13 has inbuilt Google Play Store, user can login google account and download the Apps.





Q7: If the SDK can be provided for development



A7: Yes, we can provide SDK, DEMO, documents and timely online support to help client to do the software development.





Q8: If the device can run Home Assistant?

A8: The device comes with a built-in Google Play Store, where you can download and run Home Assistant.

Q9: If the device can connect external loudspeaker by cable?

A9: You can connect external speakers through the Type-c interface that comes with the device.
