The BHT-18 range has been developed to control electricunderfloor ,water heating or water/gas boiler system. These unitsare designed for use in commercial, industrial, civil and domesticproperties.

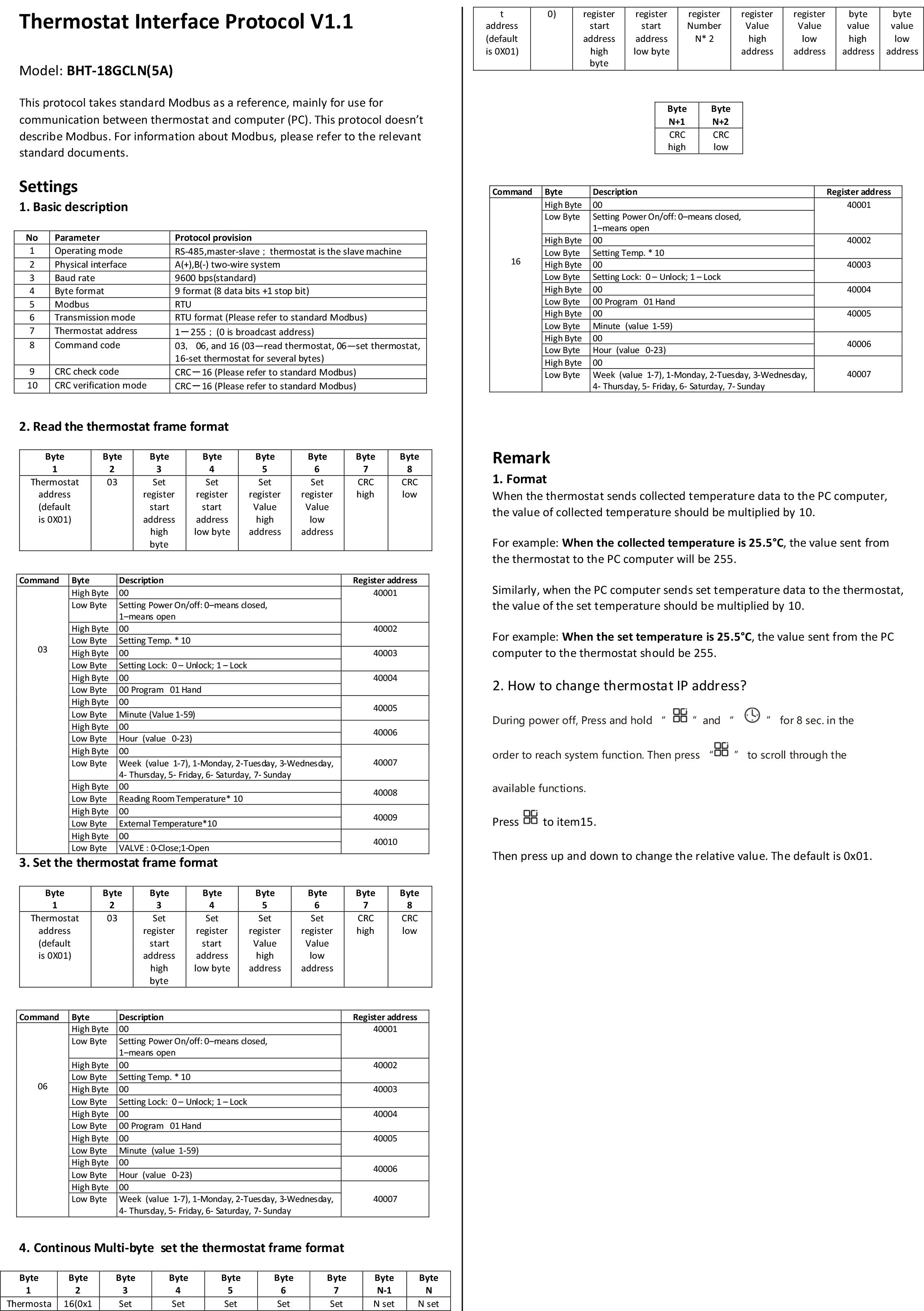

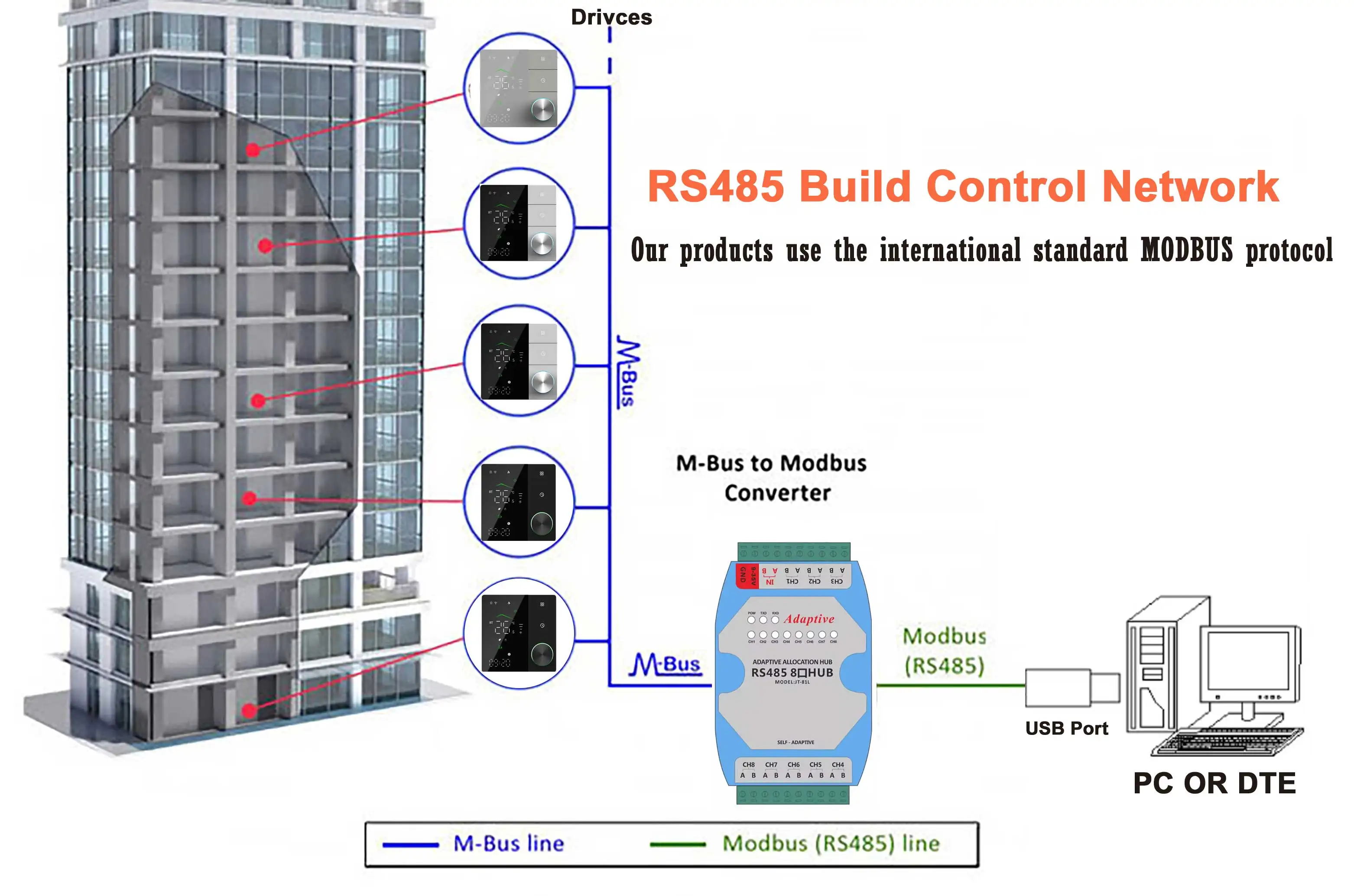

It can be configured with Matter, Zigbee, WIFI, RS485 protocols, allowing you to choose the connection method that interests you;
Technical Data

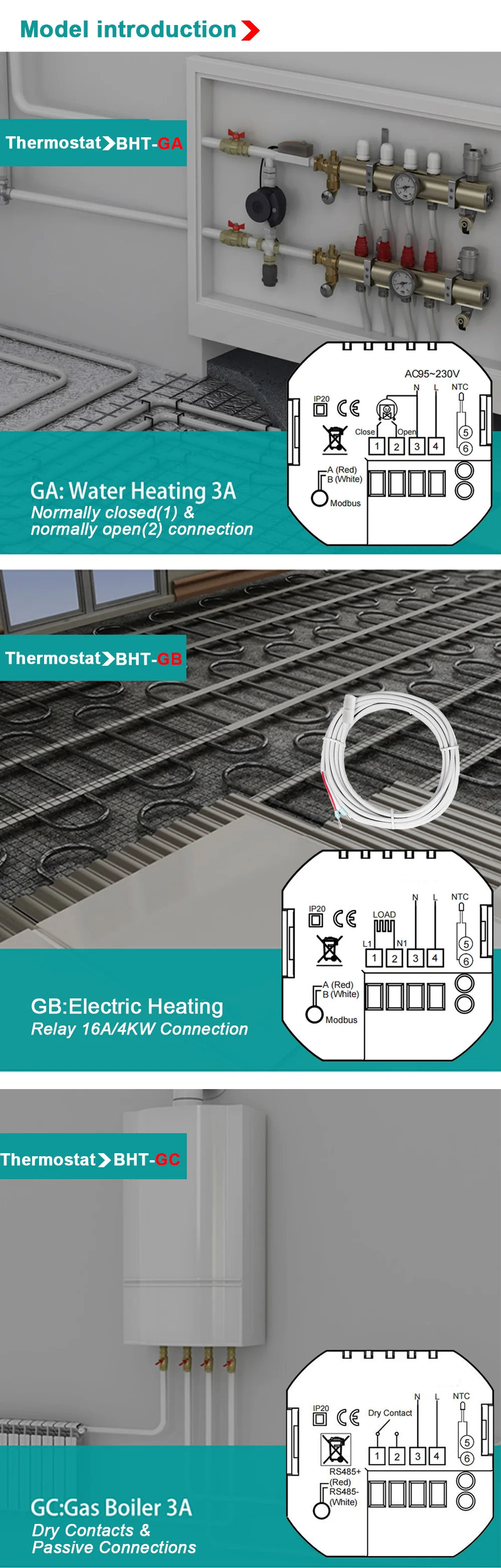

Current Load: 5A (water heating-GA, waterlgas boiler-GC), 16A (electric heating-GB)
Sensor: NTC3950, 10K
Accuracy: ±1°C
Set Temp. Range: 5-35°C
Room Temp. Range: 5-70°C
Display Temp. Range: 5 ~ 70°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45°C
Power Consumption: <1. 5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)Installation Box: 86 * 86mm Square or European 60mm Round BoxWire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20
Buttons: Capacitive Touch Buttons
1. Rich function options, Matter,Zigbee,Modbus, WIFI, keycard, etc, to meet all your needs;

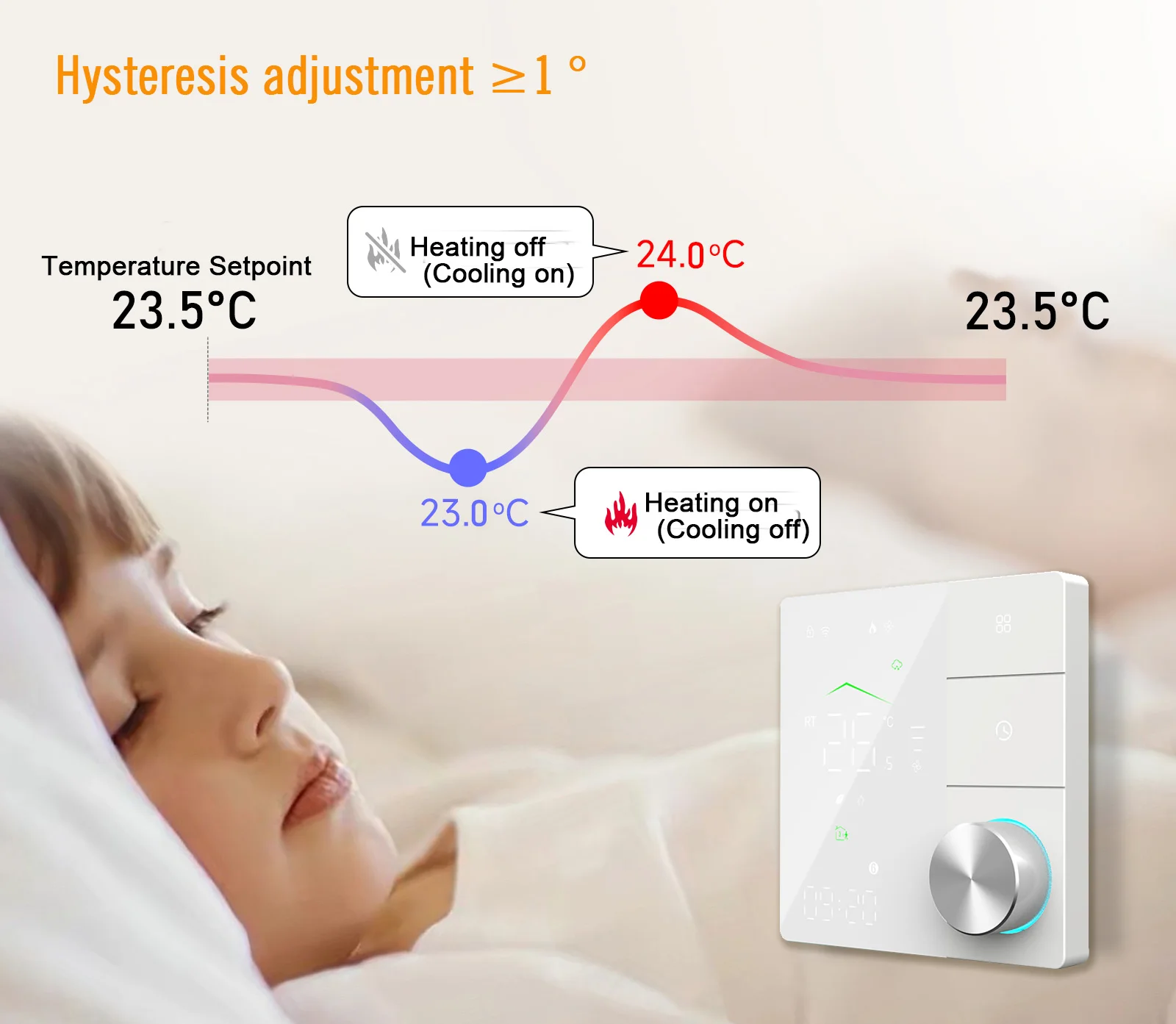

2. Strict temperature control accuracy (± 1°C) to provide the warmth you want;
3. Power off protection, save all your settings safely;

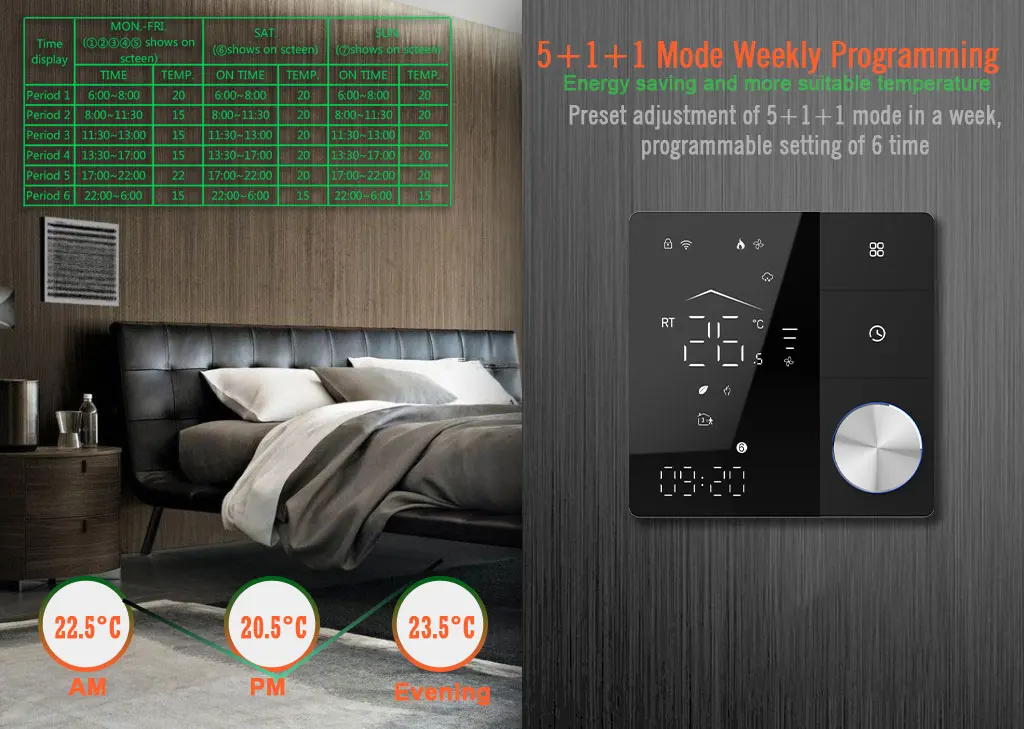

4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 timeperiods a day, green energy saving, Less cost, more intelligent andenvironmental protection;

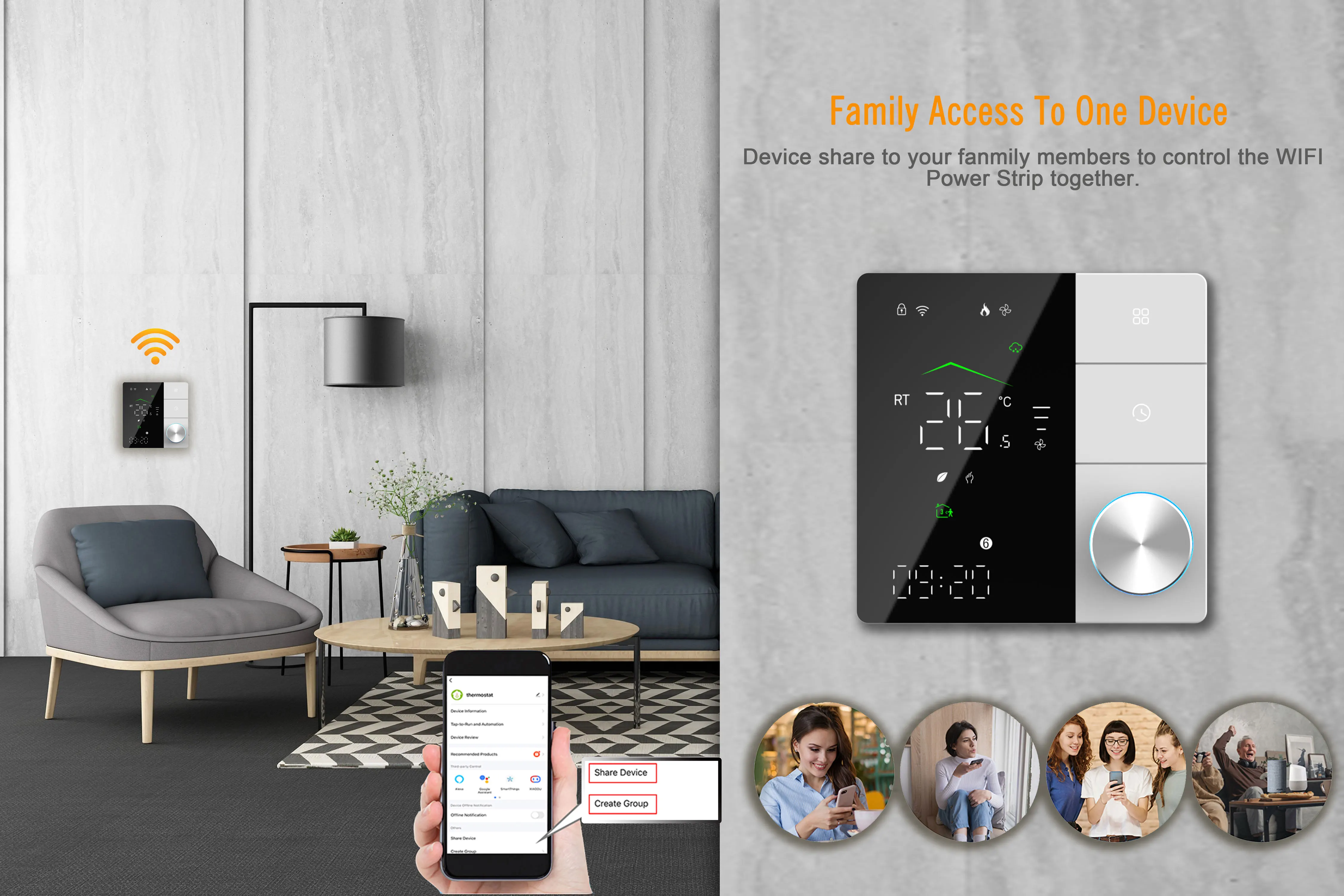

5. Support the creation of product local groups/shares to achieve unlimitedcentralized control of the number of products/ multi-terminal control;
6. Perfect access:Apple HomeKit,zon echo,Google Home,Yandex,full experience newvoice control method;
7.The Matter protocol is highly inclusive, compatible with WIFI and Zigbee protocols, and friendly to their gateways;
1. LED display, more friendly interface; LED matrix light, simple display, energysaving, protect your eyes.
2. Touch buttons to make simple operation.
3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiablethickenss above the wall is only 12.4mm.
4. Frameless acrylic panel design, simple and elegant;

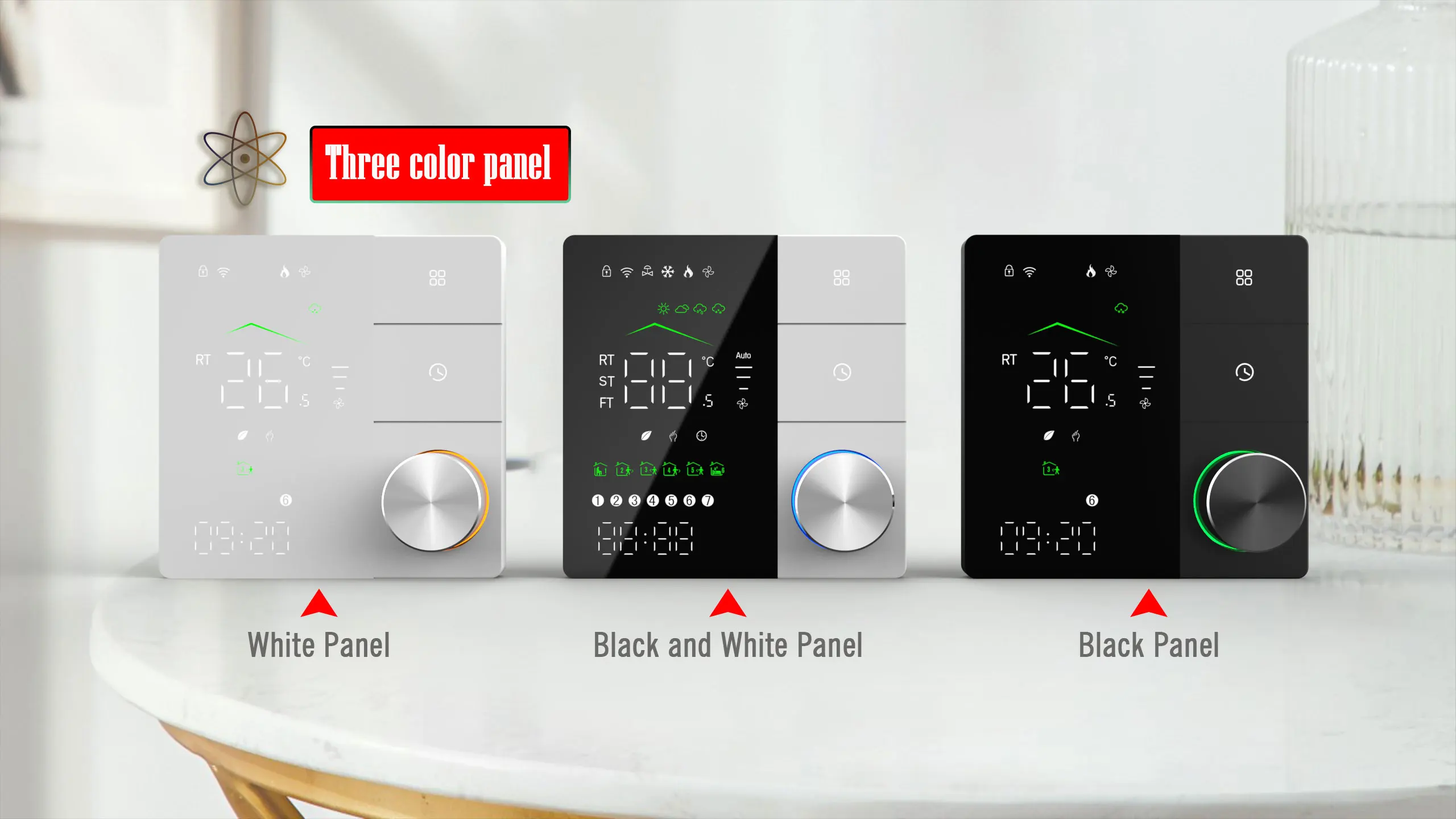

5. Classic black/white color scheme, seamlessly integrated.

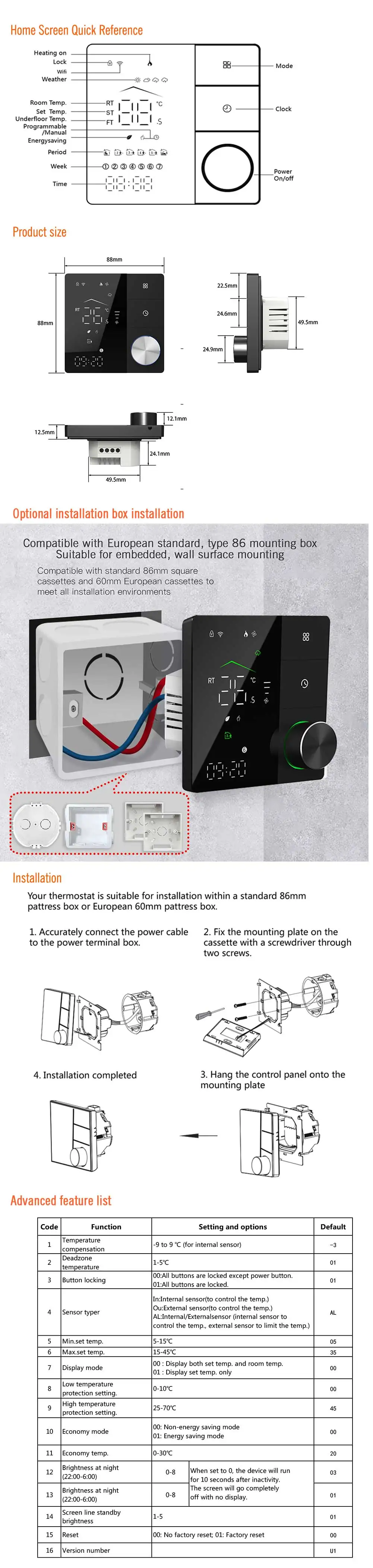

6. Compatible with standard 86mm square cassettes and 60mm Europeancassettes to meet all installation environments;
7. Interlock to connect gives you easy installation.
